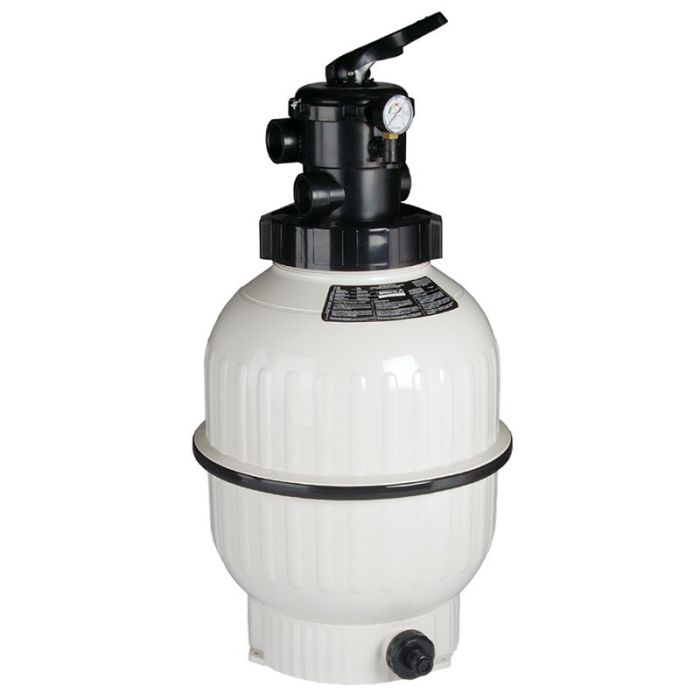

AstralPool Cantabric Top Filter
The Cantabric Filter is a sand filter manufactured by AstralPool, in this case with top outlet. Injected in technical plastics. Ivory color. Union of the upper and lower part of the filter by thermal welding. Equipped with pressure gauge, manual water and air purges and selector valve. Maximum filtration speed: 50 m3/h/m2. Maximum working pressure: 2.5 kg / cm2. Available in sizes from Ø400 to Ø750 mm.
| Code | 22399 | 15780 | 15781 | 20128 | 23866 |
|---|---|---|---|---|---|
| Ø D (mm) | 400 | 500 | 600 | 750 | 750 |
| H (mm) | 894 | 1009 | 1069 | 1239 | 1250 |
| M (mm) | 744 | 829 | 894 | 1064 | 1098 |
| N (mm) | 680 | 765 | 830 | 1000 | 1023 |
| Connections | 1½” | 1½” | 1½” | 1½” | 2” |
| Flow rate m3/h | 6 | 9 | 14 | 21 | 21 |
| Pool m3 approx. (8 h)* | 48 | 72 | 112 | 168 | 168 |
| Sand load (kg) | 60 | 100 | 150 | 300 | 300 |
| Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 8 | 14 | 15 | 23 | 25 |
| Packing volume (m3) | 0,2 | 0,37 | 0,49 | 0,83 | 0,83 |
Manuals
AstralPool Cantabric Top Technical Catalogue
Installation and maintenance manual
AstralPool Cantabric Top Filter
The wide range of Cantabric filters is considered one of the most durable filter series in the market, optimizing its performance and profitability. Manufactured in injected thermoplastic material and later welded its two halves, they are assembled with collectors and diffuser in unalterable plastic material achieving a total anti-corrosion protection and without maintenance.
Characteristics
- Sand filter with top outlet. Also available with side outlet according to your convenience and the space available for its location.
- Filter body made of unalterable plastic, resistant to chemical and atmospheric agents. Made to work outdoors.
- Equipped as standard with AstralPool 6+1 way selector valve with bayonet lock, for filtering, washing, rinsing, recirculation, emptying, closing and wintering operations (all inlets and outlets are connected).
- Transparent cover to facilitate visual inspection and access to the inside of the filter in case of side valve.
- Manifold and diffuser for continuous performance
- Manual air bleed to remove air from inside the filter if necessary
- Incorporates a ¾" manual water drain on the filter sand drain plug for easy drainage without sand loss
- At the bottom, it incorporates a manifold with arms to ensure a balanced flow and filter backwashing.
- Pressure gauge to control filter backwashing
- Base integrated in the lower half of the filter, with holes for its correct fastening to the floor.
Benefits
- Easy drainage. No sand loss by means of a manual water drain incorporated in the sand drain plug.
- Functionality. The advanced technology developed for Cantabric filters provides extraordinary reliability of operation with minimum maintenance, reflecting in a safety that allows to optimize the filtration of the pool for many years. It should also be noted that it incorporates AstralPool's characteristic 6+1 way selector valve for filtration, washing, rinsing, recirculation, emptying and closing.
- Innovative design. Beyond its functionality, AstralPool has taken care to create a new image for its Cantabric filters, resulting in a product with an attractive and innovative design both for its ivory color and its shapes, without forgetting its adaptability to the needs of location.
- Wide range. Cantabric filters provide the ideal solution for a wide range of pool sizes, since they adapt to the filtration needs for capacities ranging from 30 to 240 m.3 with flow rates from 6,000 l/h up to 30,000 l/h, with a filtration speed of 50 m3/h/m2.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
-
