AstralPool Millennium Top Filter
€249.00
In stock
Only %1 left
SKU
AstralPool Filtro Millennium Top
Best Price Online

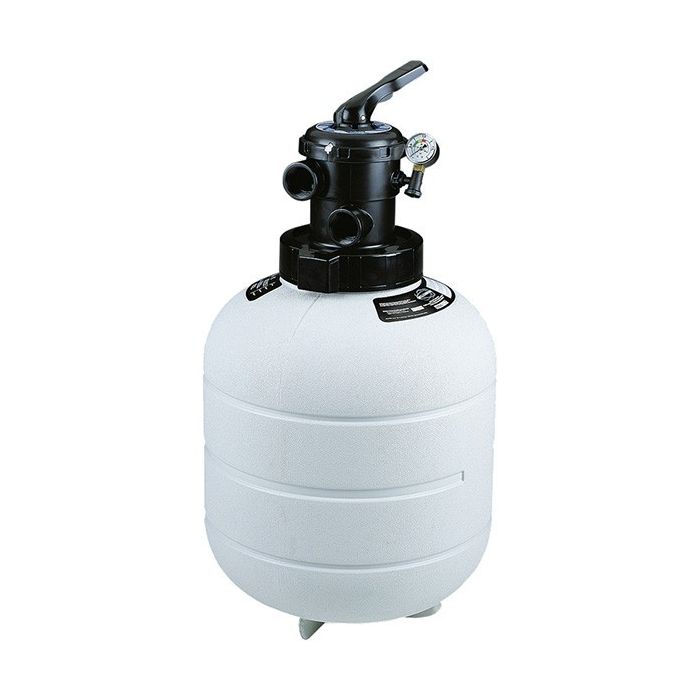

The Millennium Filter is a sand filter manufactured by AstralPool, in this case with top outlet. Manufactured in plastic material in one piece without joints by blowing process. Opening of the filter cover by means of a strapping system and equipped with pressure gauge and integrated manual air and water purges and selector valve included.
Range comparison
| Code | 33814 | 33815 | 33816 | 33817 | 33818 |
|---|---|---|---|---|---|
| Ø D (mm) | 380 | 430 | 480 | 560 | 660 |
| H (mm) | 895 | 875 | 920 | 995 | 1160 |
| M (mm) | 725 | 735 | 780 | 855 | 920 |
| N (mm) | 660 | 655 | 700 | 775 | 850 |
| Connections | 1½" | 1½" | 1½" | 1½" | 1½" |
| Flow rate (m3/h) | 5,5 | 7 | 9 | 12 | 17 |
| Swimming pool m3 approx. (8 h)* |
up to 40 | 40-50 | 50-75 | 75-100 | 140 |
| Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,0 | 2,0 |
| Sand load (0,4-0,8mm) (kg) | 40 | 60 | 85 | 135 | 250 |
| Net weight (kg) | 13 | 14 | 16 | 17 | 24,5 |
| Packing volume (m3) | 0,17 | 0,17 | 0,24 | 0,35 | 0,52 |
Manuals
Download AstralPool Millennium Top technical catalog
Download installation and maintenance manual AstralPool Millennium Top
Features
- Sand filter with top outlet. Also available with side outlet depending on your convenience and the space available for its location.
- Filter body made of unalterable plastic, resistant to chemical and atmospheric agents. Made to work outdoors.
- Equipped as standard with AstralPool's new generation 6+1 way selector valve with bayonet fitting for filtering, washing, rinsing, recirculation, emptying, closing and wintering operations (all inlets and outlets are connected).
- Transparent cover to facilitate visual inspection and access to the inside of the filter in case of a side valve
- Inner upper diffuser to ensure good water distribution over the filter bed
- Inner 1½" fitting for continuous performance
- Manual air bleed to exhaust air from inside the filter if necessary
- Integrates a manual water purge in the filter body for easy filter drainage without sand loss
- On the lower part, it incorporates a manifold with arms to ensure a balanced flow and filter backwashing
- Pressure gauge to control filter backwashing
Benefits
- Attractive design. Not only is it important that the filter is reliable and of excellent performance, but AstralPool's R&D teams are concerned with achieving an attractive design without losing an iota of quality. Its shapes, feel and colors are the result of many tests and the result is an excellent product with a very attractive design.
- Excellent performance and reliability. Millennium filters are designed to satisfy the most demanding customers. They can filter from 5,500 l/h to 12,000 l/h with a filtration rate of 50 m3/h/m2. They are also equipped with AstralPool's 6+1 position selector valve that allows filtering, washing, rinsing, recirculating, emptying and closing the filter. A valve so reliable that it is used with most AstralPool filters.
Warranty information
3 years from the manufacturer according to Royal Decree-Law 7/2021 of 27 April.
