AstralPool Cantabric Filter
The AstralPool Catabric Filter filter consists of a filter made of technical plastics, with the upper and lower joints sealed with thermal welding. It comes with a pressure gauge in its upper part, together with the air/water purge to de-aerate the filter and improve its filtering capacity. The wide range of Cantabric filters is considered one of the most durable filter series in the market optimizing its performance and profitability.
Available without selector valve, with bayonet valve or with screw valve.
AstralPool CANTABRIC Filter
Filter injected in technical plastics. Ivory color. Union of the upper and lower part of the filter by thermal welding. Equipped with pressure gauge, manual water and air purges. Selector valve included. Max. filtration speed of 50 m3/h/m2. Max. working pressure: 2.5 kg/cm2. Threaded filter cover in ABS plastic material.
CANTABRIC Filter
The AstralPool Catabric Filter is available with side or top outlet according to your convenience and the space available for its location. It has a filter body manufactured in plastic, unalterable and resistant to chemical and atmospheric agents.. Made to work in the outdoors. They are equipped as standard with 1 1/2" bayonet valve for 400 mm, 500 mm and 600 mm diameters, 2'' for 750 mm diameter and 2 1/2" screw model for 900 mm diameter, for filtration, washing, rinsing, recirculation, emptying, closing and wintering operations (all inlets and outlets are connected).
Transparent cover for easy visual inspection and access.
Manuals
Spare Parts Table
Dimensions Table
Technical Data Sheet
Installation Manual
Dimensions
*Scroll horizontally to view the complete table.
| Code | 22398 | 15782 | 15783 | 15784 | 22402AN |
|---|---|---|---|---|---|
| Ø D (mm) | 400 | 500 | 600 | 750 | 900 |
| H (mm) | 715 | 800 | 875 | 1045 | 1215 |
| M (mm) | 380 | 415 | 445 | 575 | 675 |
| N (mm) | 255 | 290 | 320 | 345 | 405 |
| Connections | 1½” | 1½” | 1½” | 2” | 2½” |
| Flow rate m3/h | 6 | 9 | 14 | 21 | 30 |
| Pool m3 approx. (8 h)* | 48 | 72 | 112 | 168 | 240 |
| Sand load (kg) | 60 | 100 | 150 | 300 | 550 |
| Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 7 | 12 | 14 | 24 | 34 |
| Packing volume (m3) | 0,15 | 0,29 | 0,4 | 0,67 | 1,3 |
AstralPool Injected Filter Cantabric
Manufactured in injected thermoplastic material and subsequently welded its two halves, they are assembled with collectors and diffuser in unalterable plastic material achieving a total anti-corrosion protection and without maintenance.
- Injected in technical plastics in ivory color.
- Union of the upper and lower part of the filter by thermal welding.
- Equipped with pressure gauge, manual air and water purges and selector valve.
- Maximum filtration rate: 50 m3/h/m2
- Maximum working pressure: 2,5 kg/cm2
- Available in sizes from Ø400 to Ø900 mm
Features

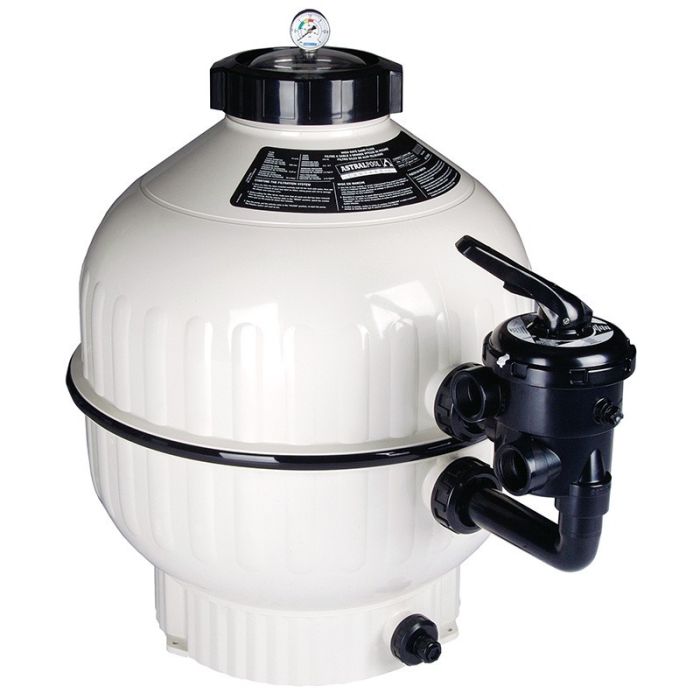

- Sand filter with side outlet. Also available with top outlet according to your convenience and the space available for its location.
- Filter body made of unalterable plastic, resistant to chemical and atmospheric agents. Made to work outdoors.
- Equipped as standard with AstralPool 6+1 way selector valve with bayonet fitting, for filtering, washing, rinsing, recirculation, emptying, closing and wintering operations (all inlets and outlets are connected).
- Transparent cover for easy visual inspection and access to the inside of the filter in case of side valve
- Manifold and diffuser for continuous performance
- Manual air bleed to remove air from inside the filter if necessary
- Incorporates a ¾" manual water drain on the filter sand drain plug for easy drainage without sand loss
- At the bottom, it incorporates a manifold with arms to ensure a balanced flow and filter backwashing.
- Pressure gauge to control filter backwashing. - Base integrated in the lower half of the filter, with holes for its correct fastening to the floor.
- Larger mouth of 225 mm to facilitate handling and loading of sand in diameters of 900 mm. For the rest of the range, the upper mouth is 177 mm.
- Available without selector valve, with bayonet valve or with screw valve.
Benefits
- Easy drainage. No sand loss by means of a manual water drain incorporated in the sand drain plug.
- Functionality. The advanced technology developed for Cantabric filters provides extraordinary reliability of operation with minimum maintenance, reflecting in a safety that allows to optimize the filtration of the pool for many years. It should also be noted that it incorporates AstralPool's characteristic 6+1 way selector valve for filtration, washing, rinsing, recirculation, emptying and closing.
- Innovative design. Beyond its functionality, AstralPool has taken care to create a new image for its Cantabric filters, resulting in a product with an attractive and innovative design both for its ivory color and its shapes, without forgetting its adaptability to the needs of location.
- Wide range. Cantabric filters provide the ideal solution for a wide range of pool sizes, since they adapt to the filtration needs for capacities ranging from 30 to 240 m3 with flow rates from 6,000 l/h to 30,000 l/h, with a filtration speed of 50 m3/h/m2.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
