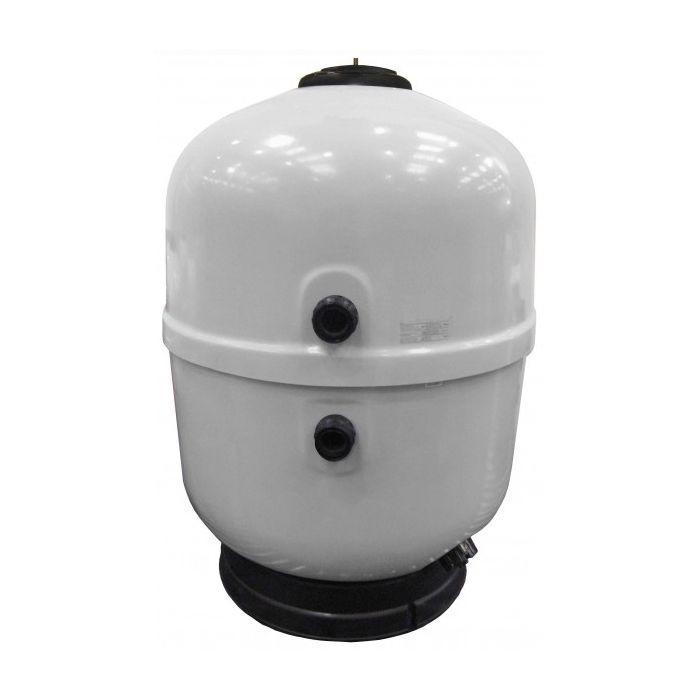

AstralPool Aster high performance filter
€779.00
In stock
Only %1 left
SKU
Filtro-Aster-alto-rendimiento
Free Shipping
Best Price Online
AstralPool Aster high performance filter, laminated in polyester and fiberglass, and whose main feature is a height of its filtering bed of 800 mm, which offers a higher quality of filtration than a residential filter by increasing the retention capacity of the smallest particles. Gray color, polypropylene foot, new screwless cover, water drain plug, pressure gauge without side selector valve.
Range comparison
| Code | 24768-0100 | 24769-0100 | 24770-0100 | 10003-0100 | 10004-0100 |
|---|---|---|---|---|---|
| Ø D (mm) | 500 | 600 | 750 | 900 | 900 |
| H (mm) | 1365 | 1370 | 1435 | 1400 | 1435 |
| M (mm) | 605 | 605 | 665 | 825 | 865 |
| N (mm) | 480 | 480 | 435 | 595 | 595 |
| Connections | 1½” | 1½” | 2” | 2” | 2½” |
| Flow rate (m3/h) at 50 m3/h/m2 |
9,5 | 16,5 | 21 | 31 | |
| Pool volume (m3) |
75 | 120 | 175 | 250 | |
| Gravel load (kg) | 16 | 35 | 65 | 135 | |
| Sand load (kg) | 200 | 300 | 450 | 580 | |
| Max working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 30 | 40 | 60 | 90 | |
| Packing volume (m3) | 0,59 | 0,59 | 0,89 | - | - |
Features and benefits
- Constructed with polyester resins and fiberglass.
- Filter bed height is 0.8 m, providing higher filtration quality than a residential filter by increasing the retention capacity of smaller particles
- By extending the saturation time of the filter bed we save on energy consumption, water consumption and chemicals (less filter backwashing is required)
- The filter can be used in monolayer or multilayer combining gravel with sand, glass or anthracite.
- Quick-opening top cover
- 2½" sand discharge at the bottom of the filter
- Optional Ø 200mm sand discharge
- Maximum pressure 2,5 bar
- Maximum filtration speed 50 m3/h/m2
- Optionally with vinylester interior finish for ozone treatment.
- Maximum working temperature of 40º.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
