Zodiac CNX 40 iQ Outlet

Manuals

Zodiac CNX 40 iQ Robot Catalogue

Video Presentation of the Zodiac CNX 40 iQ pool cleaners

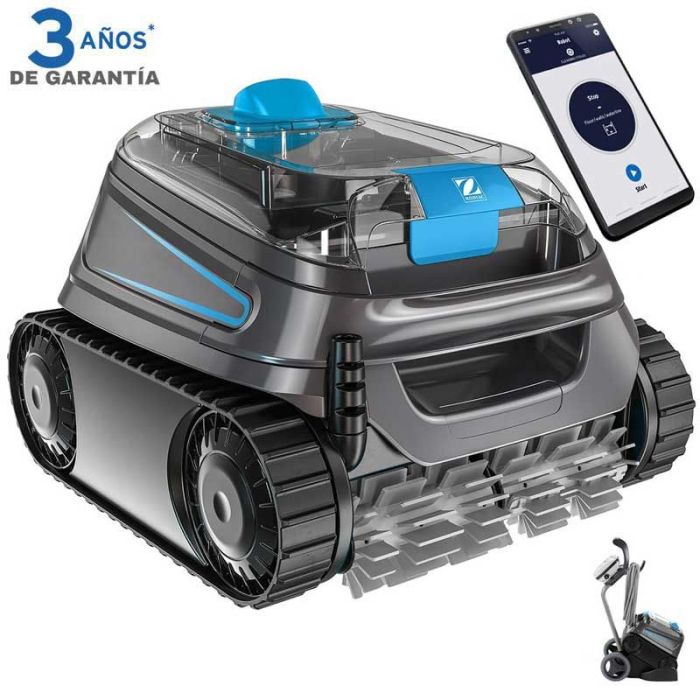

Zodiac CNX 40 iQ Robot

Zodiac CNX 40 iQ electric pool cleaner from the CNX range for cleaning 12 x 6 meter pools.

It uses the most recent innovation patented by Zodiac is its Lift System technology, which consists in the automatic exit of the water from the robot to the waterline and in an expulsion of the accumulated water several times faster than the rest of the existing systems.

It has an effective App called iAqualink to remotely manage our pool robot from our cell phone. With it, it is possible to program the cleaning cycles, turn on and off the device and analyze the performance as well as possible incidents.

NEW CNX 40 iQ MODEL!

Agility with maximum power

Types of pools in which it can be used

For in-ground and above-ground pools with rigid walls.
All types of pools
All bottoms and liners
For pools up to 12 x 6 M
Cleaning of bottom, walls and waterline

Cyclonic suction

The CNX 40 iQ, like other Zodiac robots, is equipped with the patented cyclonic technology which is much more powerful than other robotic cleaners on the market and lasts longer.

The Cyclonic Aspiration has been developed by Zodiac engineers and was incorporated into the first pool cleaners and consists of creating a high-powered whirlpool inside the robot filter, which acts in such a way that keeps the dirt in suspension, preventing it from sticking to the walls of the filters and this in turn is clogged, so it remains at all times the maximum performance at all times in the cleaning cycle at all times.

The helicoidal brushes, the progressive double level filtration and its 3 motors, the allow you to vacuum even the finest and most difficult to vacuum debris in the most optimal way. With the CNX 40 iQ robot, your pool will always be clean all year round.

Easy Handling with iAqualink

iAquaLink from Zodiac, will allow you to remotely control the functions of start, stop and can also be controlled and programmed. the robot from a smartphone. It also has a function of remote control that will allow you to make a the progress of the cleaning process at any time or adjustment of the cycle time.

The innovative Lift System function for assisted water removal, makes it easy to take the robot out of the pool in a very comfortable way.

In addition, iAqualink has automatic updates of its functions and allows the iQ cleaners of the CNX range to be evolutionary.

Patented Lift System function that facilitates the exit of the cleaner.

It works with a powerful rear water jet that is activated at the moment the cleaner comes out of the water so its weight is less at the moment of lifting.

Double Layer Filtration

Thanks to this progressive filtration, it allows to suck even the finest debris in the most powerful and efficient way by having a filtration of 150 + 60 microns and which can be accessed from the top of the robot.

Backlit filter and a transparent cover for better visualization.

You will visualize the waste collected in the transparent lid filter. And the backlit filterwhich is accessible from the top and the transparent lid make it much easier to use every time you use the robot for your daily cleaning program.

Helical shaped brushes

Thanks to its helical-shaped brushes, the Zodiac CNX 40 iQ vacuums up debris more effectively, picking up even the finest debris.

Fast and agile movement around the pool

Thanks to its 3 motors, the uniqueness of its design and above all the intelligent sensors, the CNX 40 iQ offers a excellent cleaning coverage of all areas of the pool and agility to reach any corner of your pool, without any limitation.

This model of the CNX range works perfectly in any type of pool and on any material.

Double traction

Improves cleaning and pool cleaning performance with its dual traction.

Maximum suction

With its suction nozzle of 23 cm it absorbs all kinds of impurities in the water.

Top Access Filter

Access to the filter, is made from the topand with its transparent lid makes it very easy, practical and clean to use every day. The rapid evacuation of the water facilitates the exit of the pool cleaner by making it lighter.

TRANSPARENT COVER: Allows to visualize the waste collected in the filter.

TO THE TOP ACCESS FILTER Facilitates daily use.

Accessories Included with the CNX 40 iQ

Transport Trolley

Allows you to transport and store the cleaner in a more efficient way.

Control Unit

Allows the robot to start and stop, as well as the possibility of selecting the cleaning cycle.

Double Layer Filters

Double layer filter set: 150 / 60μ. Higher filtration capacity even for the finest debris.

Base

Protecting and housing the control unit from direct contact with the ground is one of the most important things and the base will allow you to do so.

Optional Accessories



Cover

Protect your robot from sun, cold, rain or dirt with the waterproof nylon and PVC cover for extra durability.

Request information if you are interested

Comparison of Zodiac CNX Range

	Zodiac CNX 10	Zodiac CNX 20	Zodiac CNX 25	Zodiac CNX 30 iQ	Zodiac CNX 40 iQ	Zodiac CNX 50 iQ
Article number	WR000490	WR000335	WR000450	WR000357	WR000415	WR000500
Pool size up to	9 x 4 m	10 x 5 m	10 x 5 m	12 x 6 m	12 x 6 m	12 x 6 m
Cleaning Zones	Bottom, walls and water line	Bottom, Walls and Waterline	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line
Patented Cyclonic Aspiration	Yes	Yes	Yes	Yes	Yes	Yes
Cleaning Cycles	1 bottom, walls and line	2 bottom only / bottom, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line
Traction Systems	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors
Filtration	Single: 100µ	Single: 100µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Transmission	Gears	Gears	Gears	Gears	Gears	Gears
Cleaning coverage (suction nozzle)	23 cm	23 cm	23 cm	23 cm	23 cm	23 cm
Cable length	15 m	15 m	15 m	18 m	18 m	18 m
Swivel	-	-	-	-	-	Yes
Security	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection
Motors	3	3	3	3	3	3
iAqualink AppTM	-	-	-	Yes	Yes	Yes
Remote Control (Via App)	No	No	No	Yes* (Starting, stopping and monitoring the cleaning cycle) Cleaner optimization with updates)	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )
Cleaning time adjustment	No	No	No	No	Yes	Yes
Lift System for easy water drainage	No	No	No	No	Yes	Yes
Transport trolley	No	No	No	No	Yes	Yes
Illuminated filter	No	No	No	Yes	Yes	Yes
Robot weight	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg
WARRANTY
	3 years	3 years	3 years	3 years	3 years* 3 years	3 years* 3 years

Information and recommendations for use of CNX 40 IQ

• The CNX 40 IQ is a high-end pool cleaner that has been designed to adapt to all types of flat or sloped pools. In those cases in which the filtration equipment of our pool does not provide the necessary power to operate a hydraulic pool cleaner, it will be necessary to use an electric pool cleaner that can perform the maintenance of our pool in a satisfactory way.
• It must be taken into account that it will be the most efficient autonomous cleaning option for our pool, since it is an intelligent robot that will be able, depending on its characteristics, above any other method, to detect which areas remain to be cleaned and which is the best possible cycle to clean our pool.
• To be the most reliable product for the cleaning of our swimming pool also implies of some cares and maintenance superior to other products to lengthen its useful life and that its performance is prolonged in the time. That is why we have to take into account the following points:
• Outside the cleaning cycle, it is essential that the pool cleaner remains out of the water under cover to avoid the humidity factor and direct contact with pool chemicals.
• It is convenient to rinse the pool robot with fresh water and clean its double level filters after each cleaning cycle to free it from chemicals and possible obstructions. This way you will be able to perform your cleaning task at the highest level every time without any inconvenience.
• The outdoors is the pool cleaner's worst friend. It is important to keep in mind that it is a product with a high cost and therefore susceptible to theft. On the other hand, it is advisable that weather conditions such as humidity, wind and especially the sun do not come into daily contact with the robot to avoid damaging the casing and the rest of its components.
• Although a pool cleaner is designed to keep our pool clean, the disinfection of the pool will still be the most important thing and independently it will be obligatory to maintain the correct parameters of the water. The chlorine level and the Ph level of the pool must always be at the correct level if we want to submerge the robot.

Warranty information

3 years of the manufacturer according to Royal Decree-law 7/2021, of April 27.

* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.


*The equipment cannot be guaranteed to work properly on the bottom or on the walls if the pH level is not correct, if it contains slime or algae, if the filters are clogged with excessive dust, if the pool has not been thoroughly cleaned beforehand, and if the pool has uneven wall surfaces such as ribs, including pool steps.
