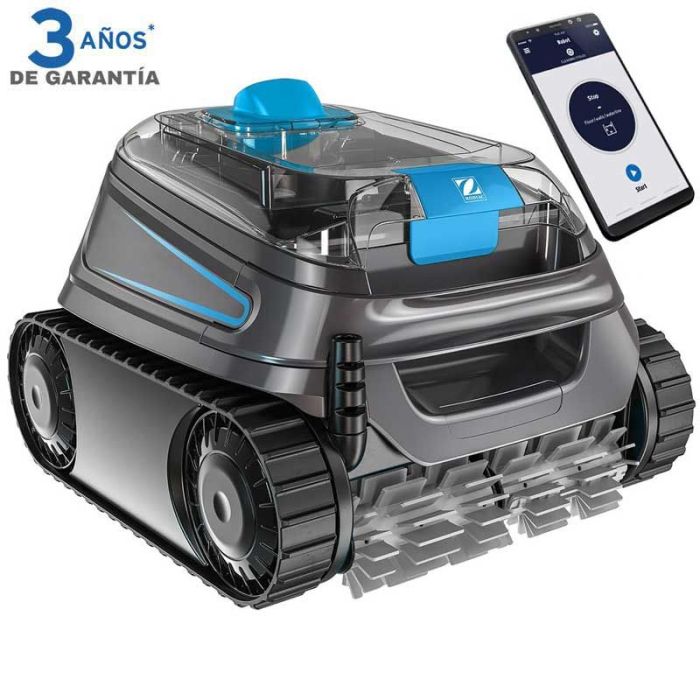

Zodiac CNX 30 iQ Robot

The CNX 30 iQ model is an agile and powerful robot pool cleaner of the latest generation for the complete cleaning of the pool basin: bottom, walls and waterline.

Control the robot with your smartphone, it connects to your Wi-Fi network from where it can be started and track the cleaning cycle.

The CNX 30 iQ pool cleaner robot with dual motor drive, cyclonic suction, intelligent sensors and the most advanced features to achieve a pool that is always impeccable. Its active propeller-shaped brushes are fantastic for more effective suction of dirt on the bottom, walls and waterline of the pool.

This model of the CNX range has a transparent top cover with backlit filter, so you can see the debris collected in the filter, even in poor visibility conditions.

NEW RANGE OF ZODIAC CNX POOL CLEANERS !

Agility with maximum power

What type of pool is it recommended for?

For inground and above ground pools with rigid walls.
All types of pools
All bottoms and liners
For pools up to 12 x 6 M
Cleaning of bottom, walls and waterline

Cyclonic suction

Automatic robotic pool cleaner of cyclonic suction, patented by Zodiacwith Wi-Fi, which provides a more powerful and long-lasting suction.

The Cyclonic Aspiration consists of creating a high-powered vortex inside the robot's filter.It acts in such a way that it keeps the dirt in suspension, preventing it from sticking to the filter walls and clogging the filter, maintaining at all times the maximum performance at all times in the cleaning cycle.

2 cleaning cycles: bottom only (1h 30 min) / bottom / walls / waterline (2h 30 min).

Easy operation from Smartphone

It connects to your Wi-Fi network with your smartphone, from where you can start and track the cleaning cycle.Thanks to the app. iAquaLinkapp, the CNX 30 iQ can remotely control the functions of the CNX 30 iQ. start and stop of the cleaner from a smartphone. And you can make a cleaning progress can be tracked at any time or perform selection of cleaning modes preset cleaning modes.

The automatic updates of its functions allow the CNX 30 zodiac robot to evolve.

Progressive dual-level filtration

Filtering of double level particle retention filter (150 / 60 microns) that allows to suck the finest debris. Two filters that work independently, rigid and very easy to access.

Transparent lid and backlit filter.

Easy top access to the filter with transparent lid with backlit filter which allows easy cleaning of the filter and viewing of the debris collected in the filter even in poor visibility conditions and all this without having contact with the dirt.

High capacity rigid filter: 4 liters.

Helical shaped brushes

Double front and rear brushes helical shape for a more efficient suction of dirt on the bottom, walls and water line.

Fast and agile displacement

Agile displacement thanks to its double traction motor and its integrated intelligent sensors that allow it to move on all types of surfaces.

18 meters of cable and only 8 kg of weight which makes it very light.

Easy maintenance of the main parts (motor block, cable, etc.).

Fast water evacuation. For effortless removal of the pool cleaner from the pool.

It has a beach safety system, which consists of the automatic stop of the cleaner in case it leaves the pool. If the robot comes out of the water, it will try to submerge again, if it does not succeed, it will stop after 30 seconds, thus protecting its motors.

Dimensions: 43 x 40 x 30 cm

Supplied with control unit with support base.

High suction capacity

With its suction nozzle of 23 cm to suck up all dirt particles

Superior Filter Access

You can access the filter from the topand the transparent lid greatly simplify daily use. The quick water evacuation makes it easy to remove the pool cleaner from the pool.

TRANSPARENT COVER: Allows you to view the debris collected in the filter.

TOP ACCESS TO THE FILTER Facilitates daily use.

Included Accessories Zodiac CNX 30 iQ Pool Cleaner

Control Unit

The control unit is essential for starting and stopping the robot, it allows the possibility of selecting the cleaning cycle.

Double layer filters

Double level filtration set: 150 / 60μ. Maximum filtration capacity for the finest debris thanks to its two layers.

Base

The base allows to protect and house the control unit and to avoid direct contact with the ground.

Optional Accessories



Transport trolley

The easiest way to transport the robot, cable and power supply.

Holster

Protect your robot from sun, cold, rain or dirt with the waterproof nylon and pvc cover for protection.

Request information if you are interested

Comparison of Zodiac CNX Range

	Zodiac CNX 10	Zodiac CNX 20	Zodiac CNX 25	Zodiac CNX 30 iQ	Zodiac CNX 40 iQ	Zodiac CNX 50 iQ
Reference	WR000490	WR000335	WR000450	WR000357	WR000415	WR000500
Pool size up to	9 x 4 m	10 x 5 m	10 x 5 m	12 x 6 m	12 x 6 m	12 x 6 m
Cleaning Zones	Bottom, walls and water line	Bottom, Walls and Waterline	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line
Patented Cyclonic Aspiration	Yes	Yes	Yes	Yes	Yes	Yes
Cleaning Cycles	1 bottom, walls and line	2 bottom only / bottom, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line
Traction Systems	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors
Filtration	Single: 100µ	Single: 100µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Transmission	Gears	Gears	Gears	Gears	Gears	Gears
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Cleaning coverage ( suction nozzle )	23 cm	23 cm	23 cm	23 cm	23 cm	23 cm
Cable length	15 m	15 m	15 m	18 m	18 m	18 m
Swivel	-	-	-	-	-	Yes
Security	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic engine protection
Motors	3	3	3	3	3	3
iAqualink AppTM	-	-	-	Yes	Yes	Yes
Remote Control ( Via App )	No	No	No	Yes* ( Starting, stopping and monitoring the cleaning cycle Cleaner optimization with updates )	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )
Cleaning time adjustment	No	No	No	No	Yes	Yes
Lift System for easy water drainage	No	No	No	No	Yes	Yes
Transport Trolley	No	No	No	No	Yes	Yes
filter Illuminated	No	No	No	Yes	Yes	Yes
Robot Weight	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg
WARRANTY
	3 years	3 years	3 years	3 years	3 years* 3 years	3 years* 3 years

CNX 30 IQ Information and Recommendations for Use

• The CNX 30 IQ is a mid-range pool cleaner that has been designed to adapt to all types of flat or sloped pools. In those cases in which the filtration equipment of our pool does not provide the necessary power to operate a hydraulic pool cleaner, it will be necessary to use an electric pool cleaner that can perform the maintenance of our pool in a satisfactory way.
• It must be taken into account that it will be the most efficient autonomous cleaning option for our pool, since it is an intelligent robot that will be able, depending on its characteristics, above any other method, to detect which areas remain to be cleaned and which is the best possible cycle to clean our pool.
• To be the most reliable product for the cleaning of our swimming pool also implies of some cares and maintenance superior to other products to lengthen its useful life and that its performance is prolonged in the time. That is why we have to take into account the following points:
• Outside the cleaning cycle, it is essential that the pool cleaner remains out of the water under cover to avoid the humidity factor and direct contact with pool chemicals.
• It is convenient to rinse the pool robot with fresh water and clean its double level filters after each cleaning cycle to free it from chemicals and possible obstructions. This way you will be able to perform your cleaning task at the highest level every time without any inconvenience.
• The outdoors is the pool cleaner's worst friend. It is important to keep in mind that it is a product with a high cost and therefore susceptible to theft. On the other hand, it is advisable that weather conditions such as humidity, wind and especially the sun do not come into daily contact with the robot to avoid damaging the casing and the rest of its components.
• Although a pool cleaner is designed to keep our pool clean, the disinfection of the pool will still be the most important thing and independently it will be obligatory to maintain the correct parameters of the water. The chlorine level and the Ph level of the pool must always be at the correct level if we want to submerge the robot.

Warranty information

3 years of the manufacturer according to Royal Decree-law 7/2021, of April 27.

* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.


*The correct operation of the equipment cannot be guaranteed both on the bottom and on the walls as long as the pH level is not correct, it contains slime or algae or the filters are clogged by excess dust, and a total cleaning of the pool has not been previously carried out, as well as any pool with irregular surfaces on the walls such as ribs, including pool steps.
