Drain Ø 210 mm with ABS grating AstralPool

Manuals

AstralPool Recessed Accessories Catalogue

Dimensions Drain Ø 210 mm AstralPool

Spare Parts Drain Ø 210 mm AstralPool

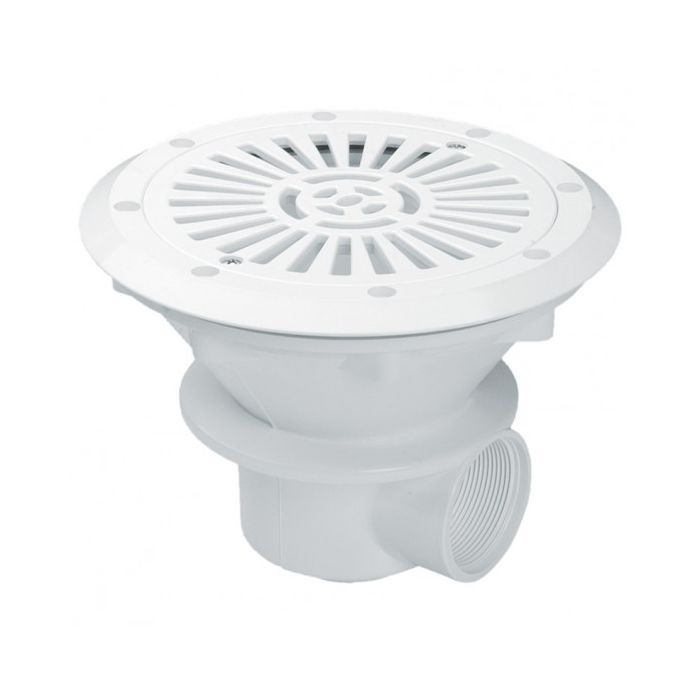

Drain Ø 210 mm with ABS grid AstralPool

All the drains in the plastic range are supplied with UV treatment on the grating.

Available in white, beige, light gray and anthracite gray.

According to UNE 13451-1 Standard, in collective pools, it is required:

• Passage speed of 0.5 m/sec.
• Max. suction speed in pipe of 1,5 m/sec.
• Minimum distance between sumps: >2 m

Recommended: Use of WARNER safety equipment for vacuum detection and automatic pump shutdown. 2" side outlet. ABS body and grate, with adhesive gaskets, flange and screws. Maximum recommended flow of 13 m3/h.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
