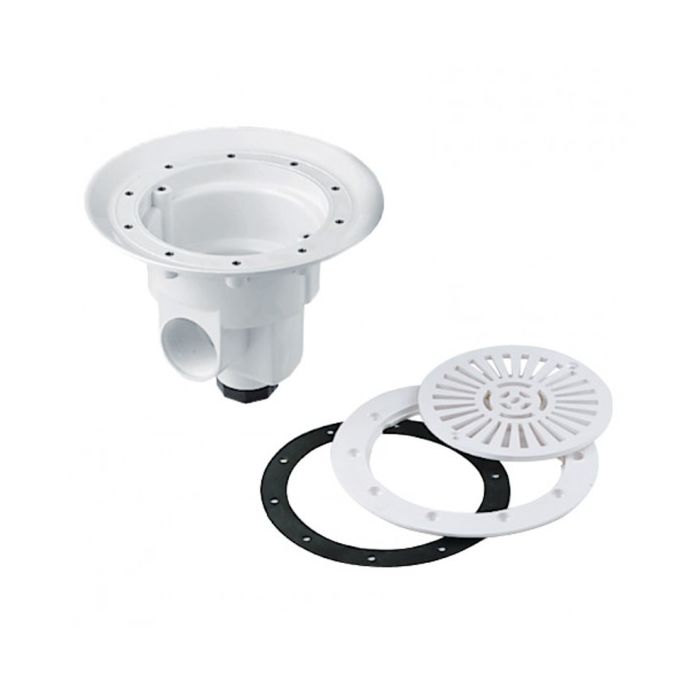

Drain Ø 290 mm special Liner model Parker AstralPool

All the plastic drains in the range are supplied with UV treatment on the grid.

According to UNE 13451-1 Standard, in collective pools, it is necessary:

• 0.5 m/sec flow rate.
• Max. suction speed in pipe of 1,5 m/sec.
• Minimum distance between sumps: >2 m

Recommended: Use of WARNER safety equipment for vacuum detection and automatic pump shutdown.

Characteristics:

• 2" side outlet and 11/2" bottom outlet.
• Special LINER pools.
• Made entirely of white ABS, stainless steel hardware and synthetic adhesive gaskets.
• Lateral outlet with the possibility of installing a plug for watertightness tests.
• Lower outlet with plug and possibility of mounting hydrostatic valve and drainage pipe.
• Suction speed of 0.5 m/sec.
• Maximum recommended flow rate of 13 m3/h.
• Flush bottom mounting for total emptying.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
