Polyester and fiberglass drain 515 mm x 515 mm. liner and prefabricated swimming pool.

Manuals

AstralPool polyester and fiberglass drain installation manual.

AstralPool Polyester and Fiberglass Drain Trap Spare Parts

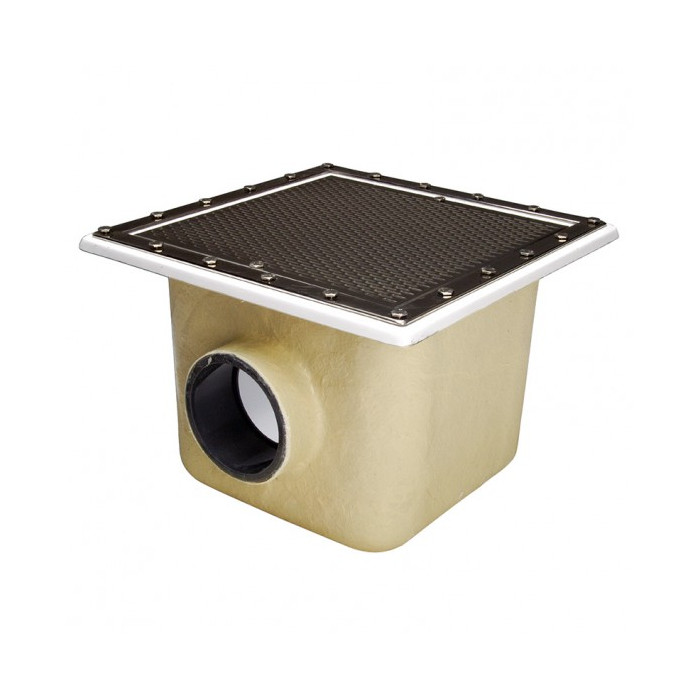

Polyester and fiberglass drain 515 mm x 515 mm. liner and prefabricated pool.

Finished with gel-coat.
AISI-316 stainless steel grating, with gaskets, flanges and screws.
Holes < 8 mm.
Recommended flow rate: 62 m3/h (0,3 m/s). Maximum recommended flow rate: 103 m3/h (0.5 m/s).

Optional hydrostatic valve. Outlet connection for gluing available in the following diameters:

• Code 20076 - Ø 110 mm - Flow rate: 42 m3/h.
• Code 20077 - Ø 125 mm - Flow rate: 51 m3/h
• Code 20078 - Ø 140 mm - Flow rate: 66 m3/h
• Code 20079 - Ø 160 mm - Flow rate: 95 m3/h

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
