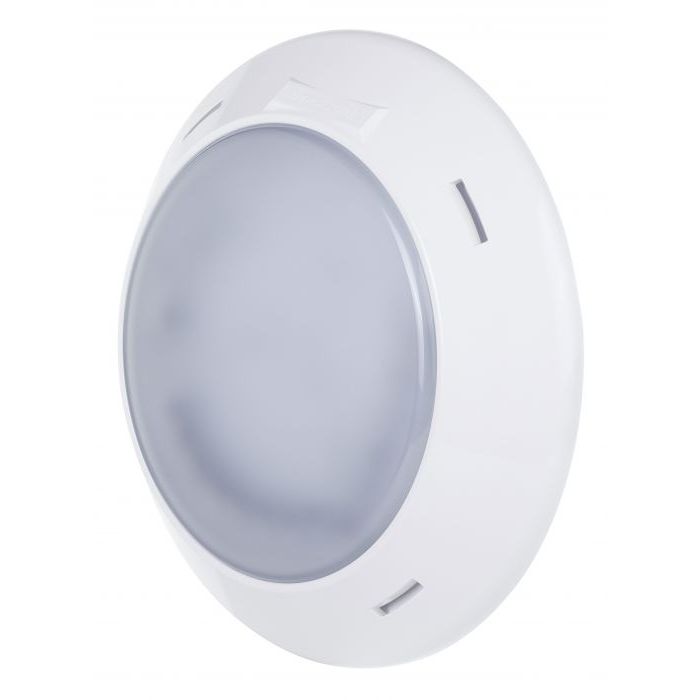

AstralPool LumiPlus Rapid V1 LED Projector
Available in white light or multicolor RGB, in models for concrete or liner pools.
To properly illuminate a pool, it is recommended to install one spotlight from the LumiPlus Rapid family every 25 m² of water surface.
Features
- Nominal voltage: 12 V AC
- Protection: IPX8
- Cable: 2,5m. H07RN-F 2x1 mm2
- Always to be installed submerged in water.
- The RGB model is compatible with all LumiPlus control devices.
- Finished in white ABS.
- Suitable for installation in saltwater pools.
- Modern and attractive design with extra-flat front that integrates into the pool.
- To properly illuminate a pool, it is recommended to install one LumiPlus Rapid spotlight for every 25 m² of water surface. Note: recommendations valid for pools with light colors. In pools with dark colors or stainless steel pools, it is recommended to oversize the proportion of floodlights per m².
Code | Model | Color Light | Consumption | Luminous flux |
---|---|---|---|---|
62327 | LumiPlus Rapid V1 - Concrete Swimming Pool | White Light | 16W (24VA) | 1.485 lm |
64339 | LumiPlus Rapid V1 - Pool Liner | White Light | 16W (24VA) | 1.485 lm |
62338 | LumiPlus Rapid V1 - Concrete Pool | RGB | 27W (37VA) | 1,100 lm |
64340 | LumiPlus Rapid V1 - Pool Liner | RGB | 27W (37VA) | 1,100 lm |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
-
