AstralPool PVC Bulkheads

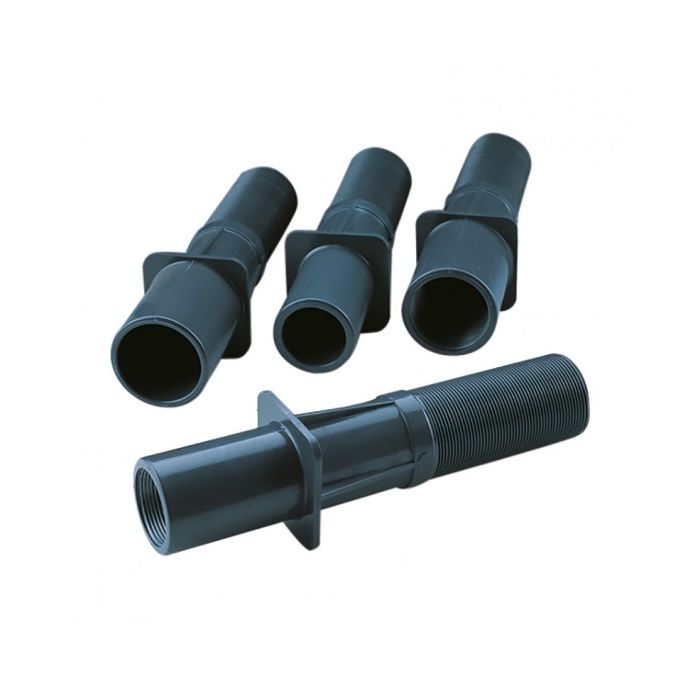

Wall bushings of 150 / 300 mm length for nozzles that can be cut to the size required by the user, according to the thickness of the pool. Manufactured in gray PVC. Designed with holes in the ribs of the flange that allow the wall bushing to be positioned on the pool structure, thus facilitating its assembly.

Available in several models:

• 00322 - Length 150 mm. External thread 2" + internal thread Ø 50 mm, internal thread 2".
• 00323 - Length 300 mm. Connection 2" female and male thread.
• 00324 - Length 300 mm. Rear connection to tube by 2" external thread or smooth internal thread for "MINI" 33684 projector.
• 00325 - Length 300 mm. External thread 2" + internal thread Ø 50 mm, internal thread 11/2".
• 00326 - Length 300 mm. External thread 2" + internal thread Ø 50 mm, Ø 50 mm special for nozzles 00289, 07957, 00304, 00305 and 00306.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
