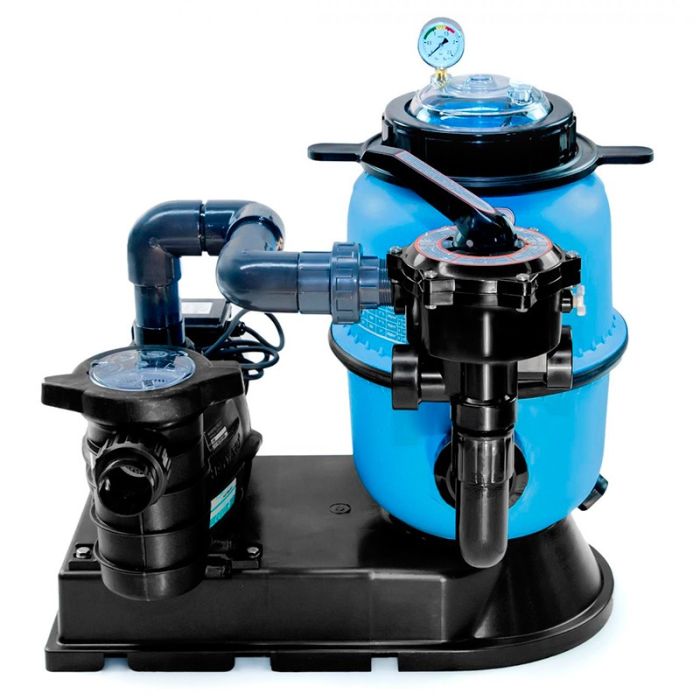

Monobloc Cyclone QP swimming pool filter system
The Cyclone monobloc for swimming pool filtration combines a sand filter with side valve and a filtration pump. Compact equipment that is delivered fully assembled and ready to install.
Monobloc Cyclone pool filter QP
Features
- Monobloc Cyclone QP designed for the filtration of swimming pools that integrates:
-
- Polypropylene injected sand filter with 6-way (1½") side selector valve, pressure gauge, air purge and drain plug. Transparent top cover with nut lock.
- Single-phase filtration pump with pre-filter.
- Connections of 1½".
- Includes base for the filter tank and base for the filtration pump.
- The monobloc does not include sand, which must be purchased separately.
Reference | 540084 | 540085 | 540082 | 540083 |
Ø (mm) | 300 | 400 | 500 | 600 |
Flow rate (m³/h) | 4 | 7 | 10 | 14 |
Filtration pump power (hp) | 0,25 | 0,35 | 0,75 | 1 |
Sand load (kg) | 30 | 60 | 85 | 150 |
Glass load (kg) | 24 | 48 | 68 | 120 |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
-
