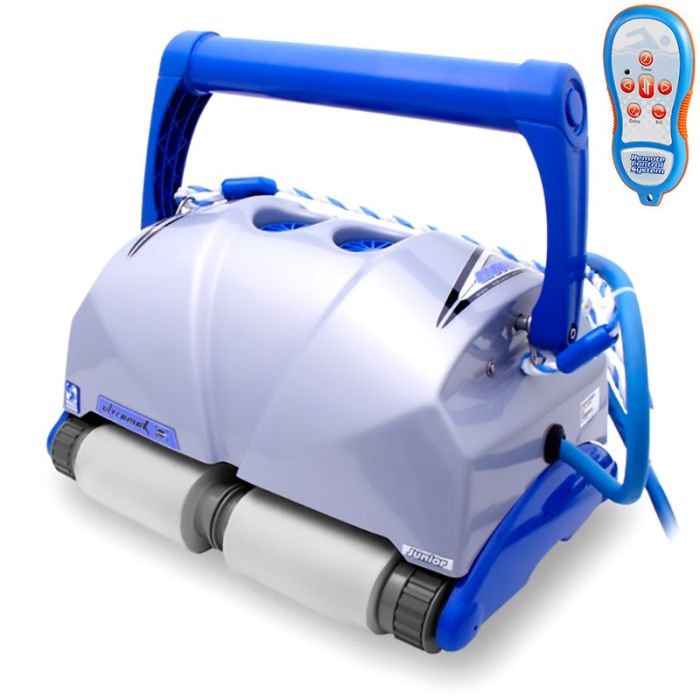

UltraMAX Junior Cleaner

Cleaning Program:

Most commercial pools have overflow systems, thus the surface water line does not exist. However, UltraMAX pool cleaners have been designed with a special program for cleaning the bottom of the pool only.

1. In your Standard mode of operationWhen the UltraMAX touches the wall, it will go up for 2 seconds and then change direction. Since the UltraMAX Standard must climb walls very briefly, it comes factory equipped with "miracle brushes" made of PVC.

2. The UltraMAX Standard's automatic program will occasionally change the direction of the machine by 90 degrees during the cleaning period. The UltraMAX has an infrared wall sensor system. When the UltraMAX contacts the wall or any other obstacle, the infrared transmits a command to the steering motor to reverse the direction of the unit. All infrared equipped units come with PVC rubber brushes.

3. For "beach type" pools or pools with access ramps for disabled persons, the UltraMAX can be ordered with a Depth Sensorknown as a "Beach Boy" option. When the UltraMAX "Beach Boy" begins to come out of the water, this sensor reverses the direction of the cleaner, preventing the UltraMAX pump motors from deteriorating.

Specifications:

The UltraMAX / Ultrabot series of cleaners are designed to. commercial pools. The unit comes equipped with two powerful steering motors (one main and one secondary) and two very strong filtration motors. They have a special cleaning program and a sophisticated remote control system.

All UltraMAX, UltraMAX Junior and Ultrabot Magnum come ready to operate, requiring no installation or supervision when in use. They operate economically at low voltage and require minimal maintenance. Standard PVA brushes allow the device to climb virtually any surface, including tiles. The remote control allows the user to turn the UltraMAX in any direction (left, right, forward and backward), from a distance of 30 to 40 meters. It operates on 24 V. d.c. and is approved by TUV laboratories for GS and CE.
