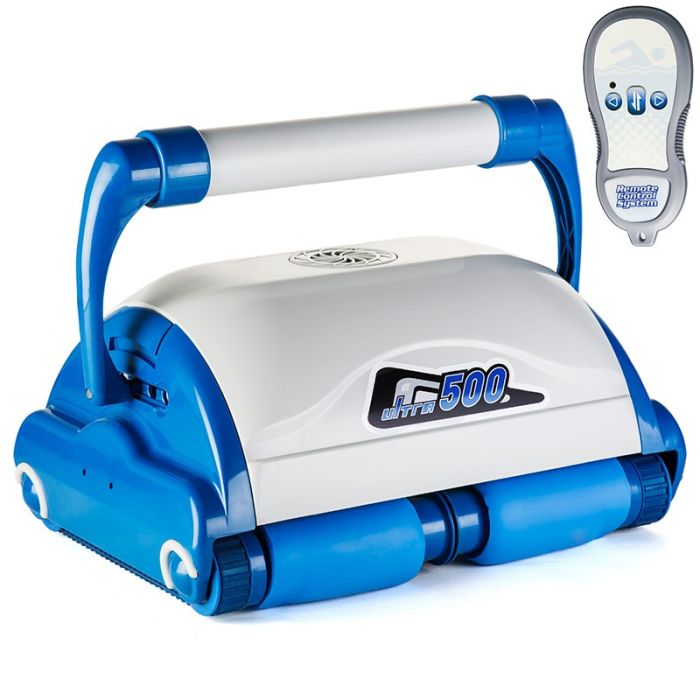

Astralpool Ultra 500 pool cleaner
A perfect robot for cleaning commercial and public pools up to 25x12m, such as those found in communities, schools, universities, hotel complexes and semi-Olympic pools.
Manuals
User manual Astralpool Ultra 500
Astralpool Ultra 500 transformer manual
Remote control manual
Catalogue Astralpool Ultra 500
AstralPool Ultra 500 with AquaSmart System and Gyro,
The AstralPool Ultra 500 comes with the Aqua Smart System, which is an electronic program installed in the robot's brain that allows it to map any pool floor and systematically brush and vacuum the entire pool. It includes a radio control system, which allows the unit to be directed, with a 360º mobility from a distance of 30-40 meters.
In addition to the automatic cleaning program, the operator can use the ULTRA 500's remote control mode for quick cleaning of an area. With a simple touch of a button the ULTRA 500 cleaner can be steered 360° in any direction.
What is the AquaSmart System
The Aqua Smart System is an advanced software that uses an algorithm to optimally calculate the path the robot should take to clean the pool efficiently and in the shortest possible time.
What is the Gyro System?
Gyro is an intelligent algorithm created by Aquatron to improve the robot's navigation and maximize its efficiency.
Main benefits:
Created to improve the robot's navigation and maximize its efficiency, Aquatron has launched GYRO System the new intelligent algorithm.
Located in the robot's management circuitry GYRO has the functions similar to an electrical gyroscope like the latest mobile devices.
Features
- Equipped with a powerful steering motor and a large-capacity filtering motor.
- Does not need any installation or supervision when in operation.
- 3 cleaning cycles
- 2 hour cycle (floor only)
- Cycle 4 hours (floor and wall)
- Cycle 5 hours (floor and wall)
- Equipped with gyroscope ensures total cleaning of the pool surface
- Allows to delay the start of the cycle and select the cleaning level thanks to its new Aquacontrol 500 transformer.
- The 30 meter long flotation cable allows it to operate efficiently in commercial pools.
- Its modern transformer must be placed at least 3 meters away from the pool.
- Includes new, reinforced transport trolley
Technical features
*Scroll horizontally to view the complete table
Recommended pool size | 25m |
---|---|
Motors | 1 pumping motor + 2 traction motors |
Filtered water flow rate | 22m3/h |
Cleaning coverage | 580m2/h |
Floating cable | 30m |
Traction motor | 30 V DC |
Cleaning program | 3h/4h/5h |
Filter specifications Reusable bag | 11520 cm2 |
Electrical specifications | 100-259 V / 50-60 Hz |
Voltage in water | 24 V DC |
Cleaning level | Basic/Standard/Superior |
Delayed start of cleaning cycle | 2h (optional) |
Obstacle detection | Yes |
Gyroscope | Yes |
Electronic antijump | Yes |
Pool type selection | Yes |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
-
