Astralpool Ultramax Gyro cleaner

Manuals

User manual Astralpool Ultramax Gyro
Catalog Astralpool Ultramax Gyro

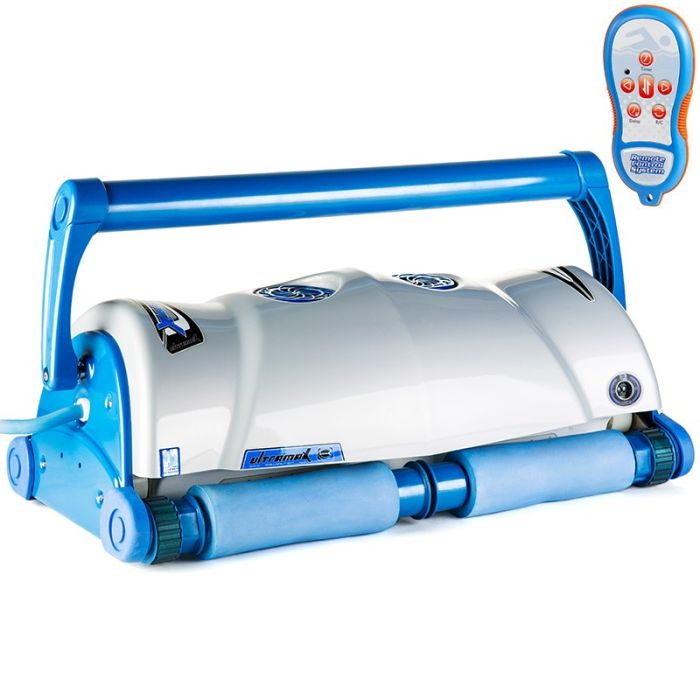

Astralpool Ultramax Gyro

The Astralpool Ultramax Gyro has all the technical characteristics of the Max but it is also much more resistant, as it is reinforced with stainless steel protections in the casing and in the steering shafts. It is also much more practical, as its filters can be removed easily, quickly and in one go, due to its central anchorage.

The Ultramax is one of the largest pool cleaners on the market for public pools. It is recommended for commercial and Olympic pools up to 50 meters, as well as recreational pools and water parks.
Despite its almost one meter cleaning width, it is very light in weight and surprises with its compact and modern design.

Features of the transformer

• The following cleaning settings can be programmed
  • Operating time: 3, 5, 7 and 9 hours
  • Level of cleanliness required: Gentle, periodic or intensive.

General characteristics

All Aquatron pool cleaners incorporate the Aqua Smart System, an electronic program installed on the robot motors, which allows the Ultramax to map any pool bottom and systematically brush and vacuum the entire pool.

Radio control system They include a radio control system that allows the unit to be directed directly to the areas of the pool where cleaning is needed, with 360º mobility, from a distance of 30 to 40 meters.

When an Ultramax is in the R/C program, all sensors are bypassed and all movements of the unit are controlled from the remote control.

Delay Program Once the cleaning program has been chosen, the unit will remain in stand-by for a selectable time, and then start to operate in the chosen program.

This is ideal for allowing the dirt to settle to the bottom of the pool.

Infrared wall sensor When an Ultramax detects any obstacle, the infrared transmits a command to the steering motor to reverse the path of the unit, thus avoiding blind collisions and extending the life of the unit.

Beach Boy" air sensor This sensor returns the unit to the water when it is ascending beach pools or handicapped ramps and detects that it is already out of the water at zero depth or will automatically turn the unit off if it is out of the water for too long, preventing it from overheating.

Aquakart The Ultramax includes a trolley that has been specially designed to effortlessly transport the unit, its floating cable and power supply, keeping everything clean and organized.

Technical Features

*Scroll horizontally to view the complete table.

Warranty information

3 years from the manufacturer according to Royal Decree-Law 7/2021, of April 27.

*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
