Zodiac T3 Hydraulic Pool Cleaner

Manuals

Zodiac T3 Pool Cleaner Catalogue
Zodiac T3 Cleaner technical sheet
Zodiac T3 Cleaner Instructions Manual

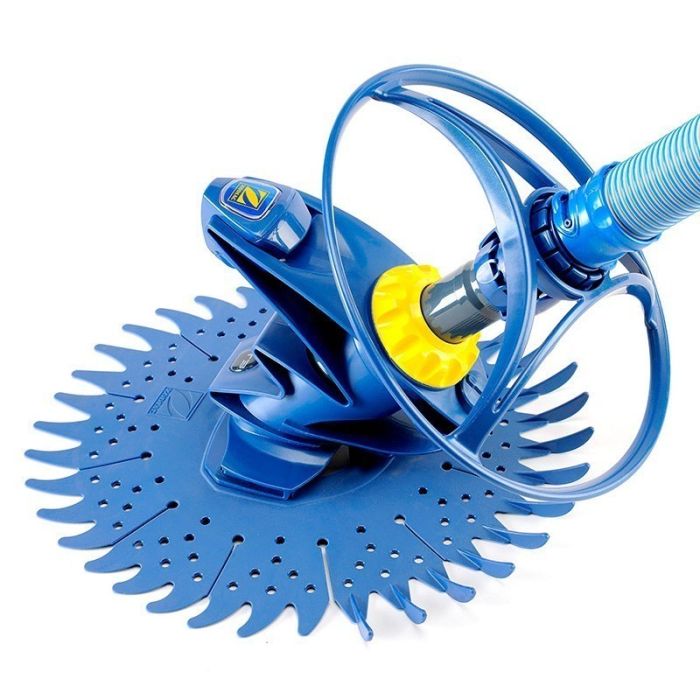

Hydraulic Pool Cleaner Zodiac T3

Zodiac T3 automatic hydraulic pool cleaner, an optimized mobility.

• The fins of the Zodiac T3 hydraulic pool cleaner improve its mobility. They cover all the corners of the pool and adapt to pools of any rectangular or oval shape.
• This hydraulic pool cleaner T3 has the new DiaCyclone diaphragm inside that improves the suction capacity up to 40% with the same flow in a silent way.
• The T3 Duo is equipped with an anti-blockage deflector that allows it to avoid obstacles that could hinder its movements: it can avoid steps, corners, stairs...
• This T3 pool cleaner incorporates the connection system patented and exclusive to Zodiac Twist Lock which guarantees a secure connectionwithout loss of suction. Simply connect it to the skimmer or to the cleaner inlet.
• Easy to install.
• This hydraulic pool cleaner is designed for the following types of pools: private in-ground pools and above-ground pools with rigid walls, up to 9 x 5 m., either rectangular or oval and whose coatings are gresite, liner, polyester shell, reinforced PVC, painted concrete. The pool bottoms can be flat or gently sloping.

Advantages and features of the Zodiac T3 hydraulic pool cleaner

• Disc with fins that increases the mobility of the cleaner.
• Dia Cyclone diaphragm: even more powerful suction (+40%).
• Twist Lock hoses: secure connection without loss of suction.
• Anti-blocking deflector disk to avoid stairs, angles, etc.
• Hose length: 10 sections of 1 m
• Operation: pool filtration circuit.
• Cleaning coverage: 30 cm
• Minimum power required from the filtration pump: ½ HP
• Cleaning coverage: 30 cm
• Travel speed: 6.5 m/min
• Installation: By the user on the cleaner intake or on the skimmer.
• Power source: pool filtration equipment.
• Hydraulic technology by suction.
• Operating system: Dia Cyclone
• Cleaning cycle: 6 hours filtration in 3 cycles of 2 hours is recommended.
• Displacement: random.
• Type of aspirated waste: fine and medium.

Technical characteristics Zodiac T5 Duo pool cleaner

Zodiac T3 pool cleaner warranty

Warranty 2 years.

In Piscinas Ferromar you can discover a wide range of Zodiac hydraulic pool cleaners so you can compare which one is the one that best suits your needs:

Comparison of Zodiac hydraulic pool cleaners

*Scroll horizontally to view the complete table.

Hydraulic pool cleaners	T3	T5 Duo	MX8
For pools up to	9 x 5 m	12 x 6 m	12 x 6 m
Cleaning area	Bottom	Bottom / Walls	Background / Walls
Cleaning cycle	A filtration of 6h in cycles of 2h is recommended.	A filtration of 6h in 2h cycles is recommended.	A filtration of 6h in 2h cycles is recommended.
Energy source	Pool filtration equipment	Pool Filtration Equipment	Pool Filtration Equipment
Minimum power of the filtration pump	1/2 HP	3/4 HP	3/4 HP
Displacement	Random	Random	Random
Operating system	DiaCyclone diaphragm	DiaCyclone Diaphragm	Suction turbine and 2 suction propellers
Installation	By the user at the cleaner inlet	By user at the cleaner inlet	By the user at the cleaner inlet
Type of debris sucked up	Fine and medium	Fine and medium	Fine and medium
Hose length	10 sections of 1 m-	12 sections of 1 m	12 sections of 1 m
Weight of the cleaner	1,2 Kg	1,4 Kg	3,2 Kg
Cleaning cover	30 cm	44 cm	36 cm
Travel speed	6,5 m/min	6 m/min	8 m/min

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
