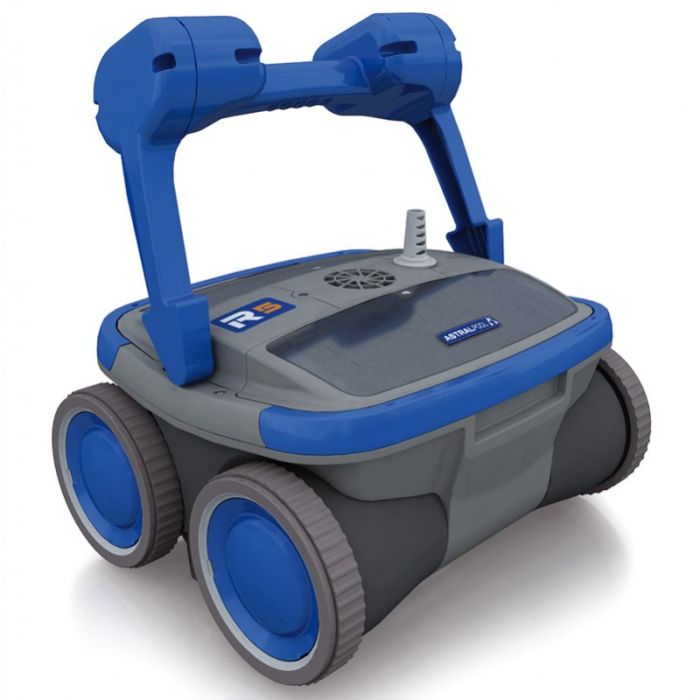

AstralPool R5 pool cleaner

Manuals

AstralPool R5 Pool Cleaners Manual

Video

Comparison of Astralpool Pool Cleaners Range

*Scroll horizontally to view the full table

		R3		R5
Code	70652	66666	70650	67981
Depth/Half-round	Yes	Yes	Yes	Yes
Walls	No	No	Yes	Yes
Waterline	No	No	Yes	Yes
Cleaning cycle (h)	1,5/h	1,5/h	2/h	2/h
Aquasmart	Yes	Yes	Yes	Yes
Gyro navigation system	Yes	Yes	Yes	Yes
Possibility of external programmer	Yes	Yes	Yes	Yes
Pool length (m)	8	8	10	10
Obstacle detection	Yes	Yes	Yes	Yes
Floating cable length	16m	16m	16m	16m
Swivel	Yes (electronic)	Yes (mechanical)	Yes (electronic)	Yes (mechanical)
Transport Trolley	No	No	No	No
Suction flow rate	22 m3/h	22 m3/h	22 m3/h	22 m3/h
Filter Type	Top access - easy view 3D	Top access - easy view 3D	Top access - easy view 3D	Top access - easy view 3D
Rotary brushes	Lower central	Lower central	Lower central	Lower central
Adjustable suction nozzle	Yes	Yes	Yes	Yes
Robot weight without filters (kg)	6.3 kg	6.3 kg	6.3 kg	6.3 kg
Motor block	Dual Platform 1+1	Dual Platform 1+1	Dual Platform 1+1	Dual Platform 1+1
Traction motor	24V DC	24V DC	24V DC	24V DC
Suction motor	24V DC	24V DC	24V DC	24V DC
Four-wheel drive 4WD	Yes	Yes	Yes	Yes
Wheels	Yes (PVA)	Yes (PVA)	Yes (PVA)	Yes (PVA)
Power supply	Basic SPS	Basic SPS	Basic SPS	Basic SPS
Electrical specifications	100-250 V/ 50-60 Hz 210 W	100-250 V/ 50-60 Hz 210 W	100-250 V/ 50-60 Hz 210 W	100-250 V/ 50-60 Hz 210 W
Warranty	2 years	2 years	3 years	2 years
Price	599 €	699 €	749 €	799 €

• Standard filter. It incorporates as standard thefine filtersfor greater particle retention.
• Easy view. Withtransparent windowsthat allow easy viewing of accumulated dirt.
• Bottom rotating brush. Extra brushing for more active cleaning of the pool surface.
• Easy open. Easy access to the filters from the top of the robot.
• Clean hands. No need to come into contact with dirt to clean the filter.
• PVA wheels. Highest quality and optimum adhesion for your4WD traction.
• Height adjustable suction nozzles.Maximum suctionon all types of coatings.
• Mechanical swivel. System that avoids twisting and tangling of the cable.
• Gyro technology. Newintelligent navigation systemthat guarantees the total cleaning of the pool.
• Cleaning cycle of 2.5 hours.
• Incorporates 16 meters of cable withmechanical anti-tangle system.

Warranty information

2-year manufacturer's warranty on motors, transformer and cable according to your conditions.

*The correct functioning of the equipment cannot be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, and a total cleaning of the tank has not been previously carried out*.
