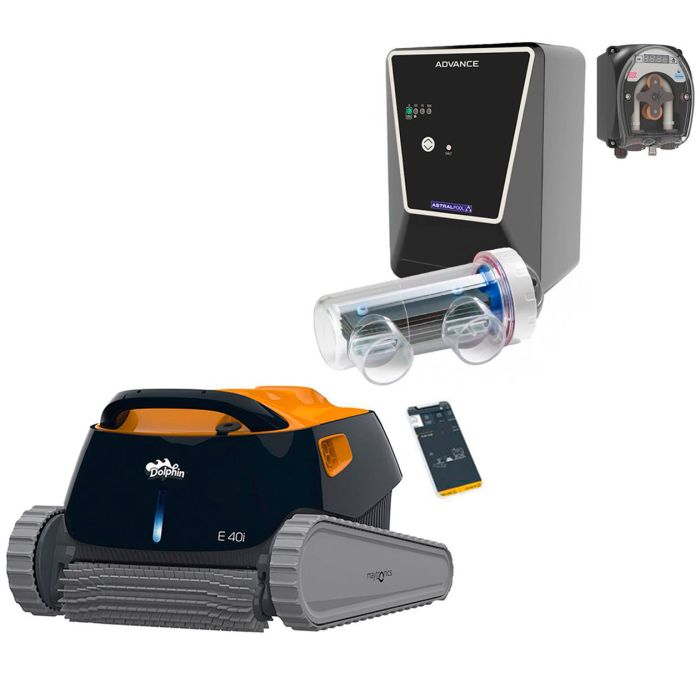

Dolphin E 40i Cleaner + Advance Salt Chlorinator + pH Pump

Chlorinator and pH Pump Manuals

Manual Astralpool Advance

E-Pro CTX Peristaltic pH Pump Installation Manual

E Series pH Peristaltic Pump Brochure

The Dolphin E40 i

The Dolphin E 40i is a robot specifically designed to perform a complete deep pool cleaning. You can manage your Dolphin E 40i through the multifunction power supply, where you can configure the different cleaning programs, as well as control it remotely through your Smartphone or Tablet using the MyDolphin Plus TM app. This application also offers the possibility of manual navigation, giving you full control over the operation of the pool cleaner from the comfort of your mobile device

Dolphin E40 i features

	Control by App SmartPhone MyDolphin Plus, for a practical programming and control of the cleaning process, with the option of manual navigation, bluetooth and Wifi.		Transport trolley, for better transport and to keep in optimal conditions.
	Active brushing, more effective brushing and cleaning. Removes algae and bacteria		PowerStream mobility system, improved navigation and pool coverage thanks to its multidirectional water flow system that allows better grip and side cleaning.
	Multi-layer basket - high performance filtration, no saturation. Retains more dirt, thanks to multilayer filters.		Multifunction energy-saving power supply is easy to use with various advanced functions, such as program selection, delayed start or timer.
	Releases the water quickly and conveniently this system facilitates the removal of our robot from the pool by releasing the water load on the equipment		Ergonomic Design thanks to an ergonomic and lightweight design facilitates the handling of the cleaner and its transport.
	CleverClean pool scanning system This system is able to determine the most efficient route for optimal cleaning of the entire pool surface.		Filter access from the top makes it easy to remove the filter from the top of the robot cleaner.
	Dolphin Premium Service Official Dolphin after-sales service so you can forget about any worries (after delivery and home pick-up (equipment under warranty)).		Double Active Brushing has a front brush that rotates at twice the speed and thanks to its rear PVC ring brush reinforces the grip on any type of pool surface.

Salt electrolysis installation

Astralpool E-Next Salt Chlorinator and Cell Dimensions

Comparison of Astralpool Advance Chlorinators Range

*Scroll horizontally to view full table

	Advance 12	Advance 21	Advance 30	Advance 40
Article number	74540	74541	74542	74543
Maximum Chlorine Production	12 g/h	21 g/h	30 g/h	40 g/h
Number of plates	5	7	11	13
Water volume	50 m³	90 m³	140 m³	180 m³
Cell life (under optimal conditions)	Tech grade: 8000 to 10,000 hours
Electrical voltage	230 V / 50 / 60 Hz
Fuse	2 A
Amperage	0,4 A	0,4 A	0,8 A	0,9 A
Salinity	4-6 g/L (min./max. = 4-10 g/L)
Water Temperature	Max. 40 ºC
Polarity inversion	Yes (2-3h)
Production Control	0 / 50 / 75 / 100%
Flow detection (gas)	Yes
Deck Production Control	Yes (Decrease of production to 10%)
Salt Level Alarm	Yes
Pipe connection	PVC adhesive Ø 63 mm
Maximum authorized pressure in the cell	2,75 bar (KPa)
Protection rating	IP45

Warranty

* 3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27, except ph probe, according to its conditions.
