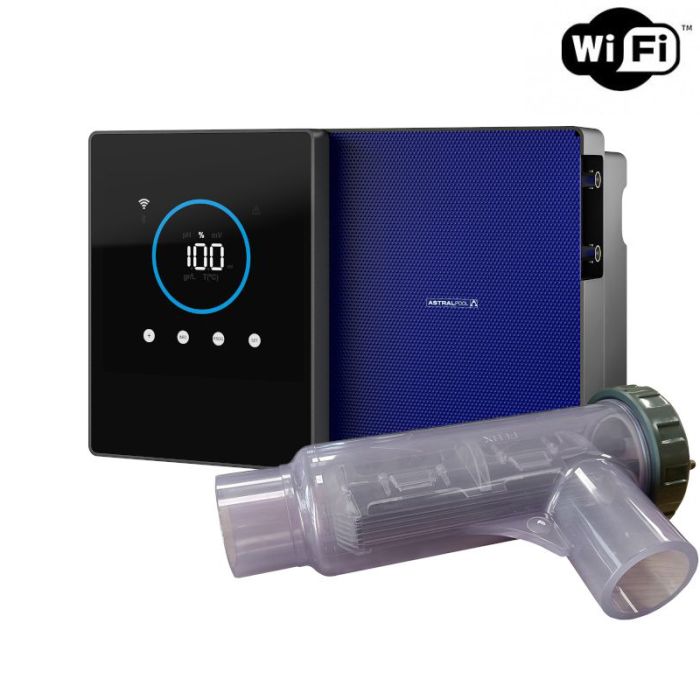

Salt chlorinator Clear Connect AstralPool
New Clear Connect salt water chlorinator by AstralPool for the natural disinfection of water in pools up to 160 m3, equipped with Bluetooth and WiFi connectivity for remote control with the Fluidra Pool app.
Chlorine production 7, 12, 21, 21, 30, 40 gr/h
Optional pH control: E-Pro pH peristaltic pump.
Manuals
Clear Connect AstralPool Salt Chlorinator Technical Sheet
Installation Service Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Salt Chlorinator Installation Service
AstralPool Clear Connect Salt Water Chlorinator
AstralPool's innovative Clear Connect salt chlorinator represents an advanced solution for natural water disinfection in pools up to 160 m3.
Designed with the latest technology, this salt chlorinator stands out for its Bluetooth and WiFi connectivity, allowing unprecedented remote control through the Fluidra Pool app.
Salt Chlorinator Installation Services
Piscinas Ferromar as an ePartner of Astralpool offers you the possibility of hiring the installation service for your salt chlorinator at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
- The production cell of the equipment must be installed on rigid pipe in its two standardized measures of 50mm and 63mm. It cannot be installed on flexible pipes. Minimum distance of 25 cm free pipe for cell installation.
- The electronic control box must be installed on the inside the technical room of the sewage treatment plant, protecting it from possible humidity and corrosive emanations due to the storage of chemical products inside the plant.
- The client must have pool salt to dissolve in the pool in proportion to 5 Kg per m3
- Filtration pump with a minimum power of 1⁄2 HP or with the minimum required water flow rate (consult manual according to model).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
Technical Characteristics Saline Chlorinator
| Water salinity/temperature analysis | Yes / Yes |
|---|---|
| Polarity reversal | Yes (adjustable + test mode) |
| Boost mode / Cover mode | Yes (100 % for 24 h) / Yes (adjustable from 20 to 80 %) |
| Flow controller | Yes (gas sensor, optional flow switch, code 76780) |
| Production rate | IPX4 |
| Connectivity / Application | Bluetooth and wifi: remote control with the Fluidra Pool app. |
| Electrode durability | 8-10 000 h |
AstralPool Clear Connect Salt Chlorinator Models
Chlorinator available in 5 different models adapting to the needs of your pool.
| Name | Clear Connect 7 | Clear Connect 12 | Clear Connect 21 | Clear Connect 30 | Clear Connect 40 |
|---|---|---|---|---|---|
| Code | 76772 | 76773 | 76774 | 77017 | 77018 |
| Chlorine production | 7 gr/h | 12 gr/h | 21 gr/h | 30 gr/h | 40 gr/h |
| Pool volume | 30 m3 | 50 m3 | 90 m3 | 120 m3 | 160 m3 |
Dimensions Clear Connect Chlorinator
Clear Connect Chlorinator Installation
Warranty Information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
