Zodiac XA 3010iQ pool cleaner + advance salt water chlorinator + pH pump

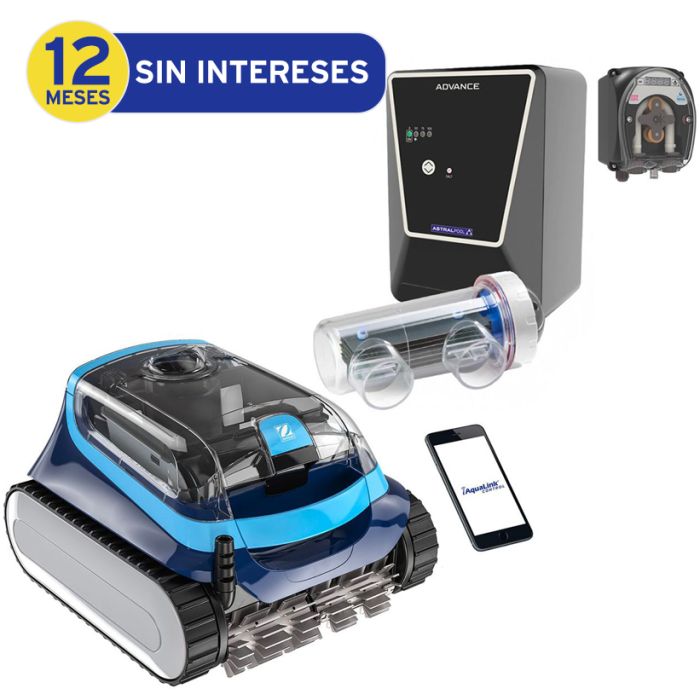

Kit including robot pool cleaner Zodiac XA 3010iQ + advance salt water chlorinator + pH pump.
The Advance chlorinator is available in 3 different models 12gr, 21gr and 30gr adapting to the needs of your pool.
Zodiac XA 3010iQ Technical Characteristics
| Number of Motors | 3 |
| Cable Length / Hose Length | 18 m |
| Cleaner dimensions (Lx W x H) | 43 x 40 x 30 cm |
| Weight of cleaner | 8 Kg |
| Weight with packaging | 14 Kg |
| Filtering Surface / Filtering Level | Double level 150/60µ 1066 cm² (1066 cm²) |
| Filter Capacity | 4 L |
| Cleaning coverage | 23 cm |
Included Accessories
Control Unit
Allows to start and stop the robot, as well as the possibility to select the cleaning cycle.
Double Level Filters
Double level filtration set: 150 / 60μ. Maximum filtration capacity for the finest debris.
Base
To protect and house the control unit from direct contact with the ground.
Optional Accessories
Transport Trolley
The easiest way to transport the robot, cable and power supply.
Holster
Nylon and waterproof pvc to protect your robot from sun, cold, rain or dirt.
Ask for information if you are interested
Warranty information
2 years. See conditions in the Warranty Document.
* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.
*The equipment cannot be guaranteed to work properly on the bottom or on the walls if the pH level is not correct, if there is slime or algae, if the filters are clogged with excessive dust, if the pool has not been thoroughly cleaned beforehand, and if the pool has uneven wall surfaces such as steps or ribs*.
Salt Electrolysis System
Astralpool E-Next Salt Chlorinator and Cell Dimensions
Warranty information
* 3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27, except ph probe, according to its conditions.
Video Presentation of the Zodiac XA TYPE pool cleaner
Zodiac XA 3010iQ Pool Cleaner Manuals
Advance Salt Chlorinator and pH Pump Manuals
Comparison of Zodiac XA Range
 |
 |
|
| Zodiac XA 2010 | Zodiac XA 3010iQ | |
| Reference | WR000334 | WR000330 |
| POOLS | ||
| Types of Swimming Pools | In-ground and above-ground with rigid walls | In-ground and above-ground with rigid walls |
| Shapes, Bottoms and Linings | All types of forms, bottoms and linings | All types of shapes, backgrounds and coatings |
| Maximum Pool Size | 10 x 5 m ( 15m cable ) | 12 x 6 m ( 18m cable ) |
| PERFORMANCE | ||
| Patented Cyclonic Aspiration | Yes | Yes |
| Brushes | Helical front brushes | Front and Rear Helical Brushes |
| Traction Systems | Tracks: 2 traction motors | Tracks: 2 traction motors |
| Cleaning zones | Bottom / Walls / Water Line | Bottom / Walls / Water Line |
| Filtration | Single: 100µ | Double Level: 150/60µ |
| Transmission | Gears | Gears |
| Security | Beach system, automatic out-of-water shutdown, electronic motor protection | Beach system, automatic out-of-water shutdown, electronic motor protection |
| CLEANING CYCLES | ||
| Number of Cycles | 2 | 2 |
| Cycle "Bottom Only | Yes | Yes |
| Cycle "Background/Walls/Waterline". | Yes | Yes |
| EASY HANDLING | ||
| Control via iAqualink applicationTM | - | Yes ( start, stop and cycle tracking ) |
| filter Illuminated | - | Yes |
| Waste display / transparent lid | Yes | Yes |
| WARRANTY | ||
| 2 years | 3 years | |
Comparison of Astralpool Advance Chlorinators Range
*Scroll horizontally to view the complete table.
 |
|
|
|
| Advance 12 | Advance 21 | Advance 30 | |
| Reference | 74540 | 74541 | 74542 |
| Maximum Chlorine Production | 12 g/h | 21 g/h | 30 g/h |
| Number of Plates | 5 | 7 | 11 |
| Volume of water | 50 m³ | 90 m³ | 140 m³ |
| Cell life span (under optimal conditions) |
Tech grade: 8000 to 10,000 hours | ||
| Electrical voltage | 230 V / 50 / 60 Hz | ||
| Fuse | 2 A | ||
| Amperage | 0,4 A | 0,4 A | 0,8 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||
| Water Temperature | Max. 40 ºC | ||
| Polarity inversion | Yes (2-3h) | ||
| Production Control | 0 / 50 / 75 / 100% | ||
| Flow detection (gas) | Yes | ||
| Cover Production Control | Yes (Decrease of production to 10%) | ||
| Salt Level Alarm | Yes | ||
| Pipe connection | PVC adhesive Ø 63 mm | ||
| Maximum authorized pressure in the cell | 2,75 bar (KPa) | ||
| Protection index | IP45 | ||
