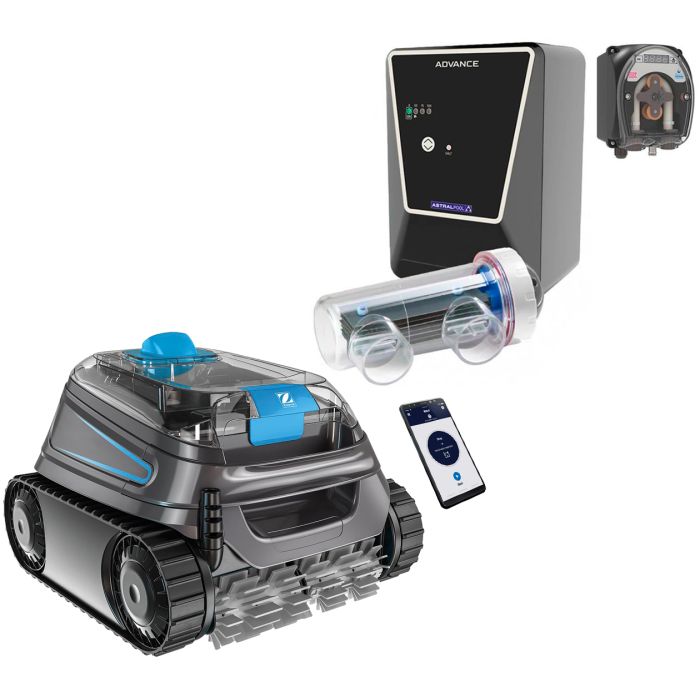

Cleaner Zodiac CNX 30 iQ + Advance Salt Chlorinator + pH Pump
Kit including robot cleaner Zodiac CNX 30 iQ + advance salt chlorinator + pH pump.
The Advance chlorinator is available in 3 different models 12gr, 21gr and 30gr adapting to the needs of your pool.
Manuals
Advance Salt Chlorinator and pH Pump Manuals
E-Pro CTX Peristaltic pH Pump Installation Manual
E Series pH Peristaltic Pump Brochure
Zodiac CNX 30 iQ Video Presentation
Zodiac CNX 30 iQ
The CNX 30 iQ model is a state-of-the-art robot pool cleaner designed to provide a complete cleaning of the pool basin, covering the bottom, walls and waterline. One of its outstanding features is its ability to be controlled via smartphone, allowing the cleaning cycle to be started and monitored from anywhere with a Wi-Fi network connection
.Equipped with a dual traction motor, cyclonic suction and smart sensors, the CNX 30 iQ is designed to deliver agile and powerful performance. Its active propeller-shaped brushes are particularly effective at effectively vacuuming dirt from all pool surfaces
.With these advanced features, the CNX 30 iQ presents itself as an ideal choice for those looking to keep their pool in pristine condition with minimal effort and maximum control convenience
.What type of pool is it recommended for?
| For in-ground and above-ground pools with rigid walls |  |
| All types of pools |  |
| All bottoms and liners |  |
| For pools up to 12 x 6 M |  |
| Bottom, wall and waterline cleaning |  |
Included Accessories Zodiac CNX 30 iQ Pool Cleaners
Control Unit
The control unit is essential for starting or stopping the robot, it allows the possibility of selecting the cleaning cycle.
Double layer filters
Double level filtration set: 150 / 60μ. Maximum filtration capacity for the finest debris thanks to its two layers.
Base
The base allows to protect and house the control unit and avoid direct contact with the floor.
Optional Accessories
Transport Trolley
The easiest way to transport the robot, cable and power supply.
Cover
Protect your robot from sun, cold, rain or dirt with the waterproof nylon and pvc cover for protection.
Salt electrolysis installation
Astralpool E-Next Salt Chlorinator and Cell Dimensions
Comparison of Astralpool Advance Chlorinators Range
*Scroll horizontally to view the complete table.
 |
|
|
|
| Advance 12 | Advance 21 | Advance 30 | |
| Article number | 74540 | 74541 | 74542 |
| Maximum Chlorine Production | 12 g/h | 21 g/h | 30 g/h |
| Number of Plates | 5 | 7 | 11 |
| Water volume | 50 m³ | 90 m³ | 140 m³ |
| Cell life (under optimal conditions) |
Tech grade: 8000 to 10,000 hours | ||
| Electrical voltage | 230 V / 50 / 60 Hz | ||
| Fuse | 2 A | ||
| Amperage | 0,4 A | 0,4 A | 0,8 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||
| Water Temperature | Max. 40 ºC | ||
| Polarity inversion | Yes (2-3h) | ||
| Production Control | 0 / 50 / 75 / 100% | ||
| Flow detection (gas) | Yes | ||
| Deck Production Control | Yes (Decrease of production to 10%) | ||
| Salt Level Alarm | Yes | ||
| Pipe connection | PVC adhesive Ø 63 mm | ||
| Maximum authorized pressure in the cell | 2,75 bar (KPa) | ||
| Protection rating | IP45 | ||
Warranty
information* 3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27, except ph probe, according to its conditions.
