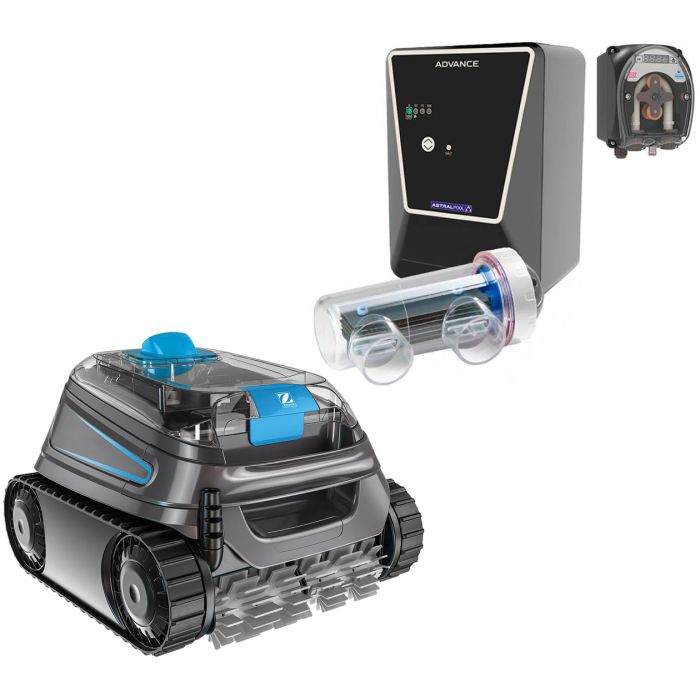

Zodiac CNX 20 cleaner + advance salt water chlorinator + pH pump
Kit including robot cleaner Zodiac CNX 20 + advance salt chlorinator + pH pump.
The Advance chlorinator is available in 3 different models 12gr, 21gr and 30gr adapting to the needs of your pool.
Advance Salt Chlorinator and pH Pump Manuals
E-Pro CTX Peristaltic pH Pump Installation Manual
E Series pH Peristaltic Pump Brochure
What type of pool should the CNX 20 robot be used for?
The CNX 20 is an innovative robotic pool cleaner designed to provide complete pool cleaning, including the bottom, walls and waterline. With features such as cyclonic suction, intelligent sensors and a dual motor drive, this robot promises to be agile and powerful, ensuring efficient pool maintenance. Its advanced features position it as an ideal choice for those looking to keep their pool always impeccable with minimal effort
.
| For in-ground and above-ground pools with rigid walls. |  |
| All types of pools |  |
| All bottoms and liners |  |
| For pools up to 10 x 5 M |  |
| Bottom, wall and waterline cleaning |  |
Included Accessories
Control Unit
Allows to start or stop the robot, as well as the possibility to select the cleaning cycle.
Rectangular filter
Ideal filter for small and large particles such as leaves, soil or 100μ pine needles.
Base
To protect and house the control unit from direct contact with the ground.
Optional Accessories
Double level filter: 150 / 60μ.
Double level filtration set: 150 / 60μ. Maximum filtration capacity for the finest debris.
Single filter of 200μ.
Cover
Nylon and waterproof pvc to protect your robot from sun, cold, rain or dirt.
Salt electrolysis installation
Astralpool E-Next Salt Chlorinator and Cell Dimensions
Comparison of Astralpool Advance Chlorinators Range
*Scroll horizontally to view the complete table.
 |
|
|
|
| Advance 12 | Advance 21 | Advance 30 | |
| Reference | 74540 | 74541 | 74542 |
| Maximum Chlorine Production | 12 g/h | 21 g/h | 30 g/h |
| Number of Plates | 5 | 7 | 11 |
| Water volume | 50 m³ | 90 m³ | 140 m³ |
| Cell life (under optimal conditions) |
Tech grade: 8000 to 10,000 hours | ||
| Electrical voltage | 230 V / 50 / 60 Hz | ||
| Fuse | 2 A | ||
| Amperage | 0,4 A | 0,4 A | 0,8 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||
| Water Temperature | Max. 40 ºC | ||
| Polarity inversion | Yes (2-3h) | ||
| Production Control | 0 / 50 / 75 / 100% | ||
| Flow detection (gas) | Yes | ||
| Deck Production Control | Yes (Decrease of production to 10%) | ||
| Salt Level Alarm | Yes | ||
| Pipe connection | PVC adhesive Ø 63 mm | ||
| Maximum authorized pressure in the cell | 2,75 bar (KPa) | ||
| Protection rating | IP45 | ||
Warranty
information* 3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27, except ph probe, according to its conditions.
Manuales Clorador Salino Advance y Bomba pH
Comparativa de Gama Cloradores Astralpool Advance
*Desplázate en horizontal para visualizar la tabla completa
|
|
|
|
| Advance 12 | Advance 21 | Advance 30 | |
| Referencia | 74540 | 74541 | 74542 |
| Producción de Cloro Máxima | 12 g/h | 21 g/h | 30 g/h |
| Número de Placas | 5 | 7 | 11 |
| Volumen de agua | 50 m³ | 90 m³ | 140 m³ |
| Duración de vida de la celula (en condiciones óptimas) |
Tech grade: de 8000 a 10.000 horas | ||
| Tensión eléctrica | 230 V / 50 / 60 Hz | ||
| Fusible | 2 A | ||
| Amperaje | 0,4 A | 0,4 A | 0,8 A |
| Salinidad | 4-6 g/L (mín./máx. = 4-10 g/L) | ||
| Temperatura del Agua | Máx. 40 ºC | ||
| Inversión de polaridad | Sí (2-3h) | ||
| Control de Producción | 0 / 50 / 75 / 100% | ||
| Detect. caudal (gas) | Sí | ||
| Control de Producción de la cubierta | Sí (Disminución de la producción al 10%) | ||
| Alarma Nivel de Sal | Sí | ||
| Conexión de la tubería | PVC adhesivo Ø 63 mm | ||
| Presión máxima autorizada en la célula | 2,75 bar (KPa) | ||
| Índice de protección | IP45 | ||
