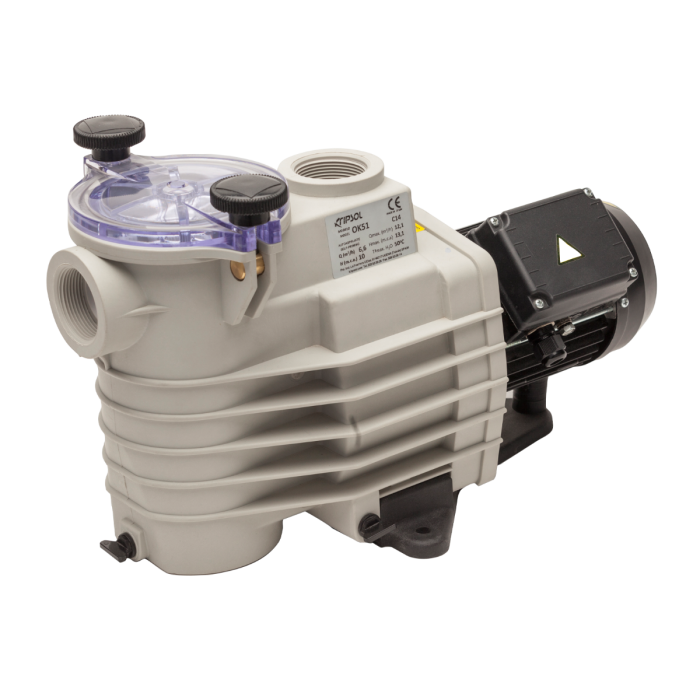

Kripsol Ondina Pump
The ONDINA series, has the closing of the lid by means of hinged handles with AISI 304 screws and O-ring.
Excellent pump quality price up to 50m3 pools.
Characteristics and dimensions
Pump body made of thermosetting plastic.
Stainless steel hinges with stainless steel studs. Noryl turbine with 303 stainless steel insert.
Enclosed motor, IP 55 protection, class F.
This pump can be used with sea water
*Scroll horizontally to view the complete table.
Type | HP P2 | HP P1 | Single-phase | Cond. | Three-phase | DB (*) | Height in m. | A (mm) | Weight | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5 | 6 | 8 | 10 | 11 | 12 | 14 | ||||||||||||
V | A | V | A | Flow rate in m3/h | Single-phase | Three-phase | ||||||||||||
OK033M | 0,33 | 0,45 | 230 | 2,45 | 12/12,5 | - | - | 53,3 | 9,6 | 8,9 | 7 | 4,8 | 3 | - | - | 475 | 8 | - |
OK051M OK050T |
0,5 | 0,58 | 230 | 3,5 | 12/12,5 | 230/400 | 2,45/1,4 | 54,2 | 11 | 10,1 | 8,5 | 6,6 | 5,2 | 4 | - | 475 | 8,5 | 8 |
OK071M OK070T |
0,75 | 0,75 | 230 | 4 | 12/12,5 | 230/400 | 3/1,75 | 57,2 | 13,9 | 13,2 | 11,9 | 10 | 9 | 7,5 | 3,5 | 475 | 9 | 8,5 |
OK100M OK0100T |
1 | 1 | 230 | 5 | 20 | 230/400 | 3,6/2,2 | 59,5 | 20 | 19,2 | 17,2 | 14,5 | 12,9 | 10,5 | 5,5 | 505 | 9,5 | 9 |
P1: Power consumption
P2: Nominal power
(*): dB=10 m.c.a/heat
Kripsol Ondina Pump
- Injected thermoplastic body
- Noryl turbine with F.V. and AISI 303 insert in ONDINA series.
- Basket in white injected plastic material
- Body cover in transparent polycarbonate
Motor
- IP 55 protection
- Insulation class F
- 50 Hz
- 2,850 r.p.m.
These pumps can be used with seawater.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
-
