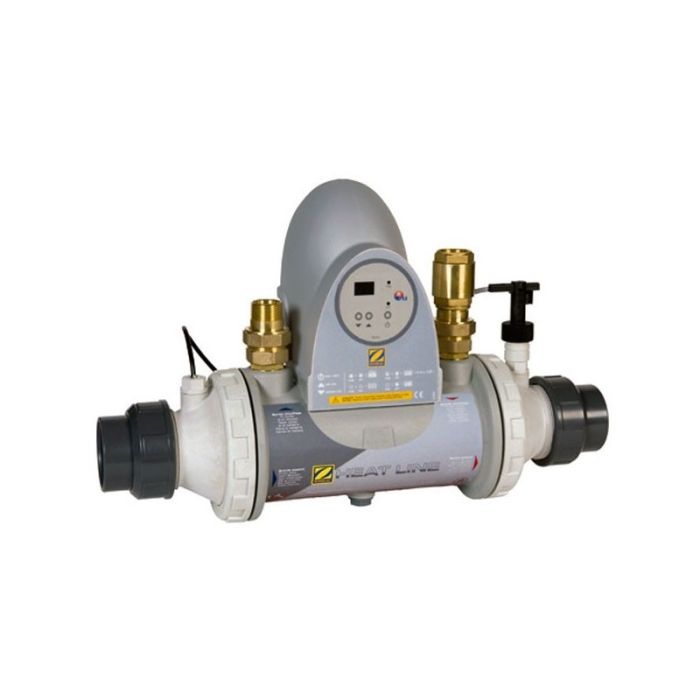

Zodiac Heat Line heat exchanger without recirculation pump
The Zodiac Heat Line heat exchanger without recirculation pump, compatible with all types of domestic heating systems (heat pump, boiler, geothermal and solar). Equipped with control unit, flow controller, regulation probe, recirculation pump. Control thermostat (for models without recirculation pump and plus).
Manuals
Zodiac Heat Line heat exchanger without recirculation pump technical sheet
Zodiac Heat Line heat exchanger without recirculation pump
Easy to install and with different configurations that allow it to adapt to all types of installations. Simple and safe to use, the heat exchanger transfers the energy from the home heating system to the pool water.
Heat Line Plus features
- Low consumption recirculation pump.
- Maximum resistance with titanium plate casing and injected noryl/polyamide body.
- Zodiac Heat Line Plus multi-tube heat exchanger fully equipped for heating outdoor or indoor pools from 50 to 200 m3.
- Complete digital controller (thermostat + on/off switch).
- Non-return valve.
- Flow switch (for models without recirculation pump and plus).
- Electrical panel connected with cable with 230 V plug (for models without recirculation pump and plus).
| Technical specifications | Heat Line 20 | Heat Line 40 | Heat Line 70 |
|---|---|---|---|
| Equipped model | W49KT20W | W49KT40W | W49KT70W |
| Maximum volume m3* | 50 | 120 | 200 |
| Power with primary at 90°C (kW) | 20 | 40 | 70 |
| Power with primary at 60°C (kW) | 8,5 | 17 | 30 |
| Power with primary at 45°C (kW) | 4 | 8 | 14 |
| Maximum operating pressure | 2b | 2b | 2b |
| Max. permissible temperature | 90°C | 90°C | 90°C |
| Weight (kg) (Model without equipment) | 3 | 3 | 4 |
| Weight (kg) (Model without recirculation pump) | 4 | 4 | 5 |
| Connections | |||
| Climate system primary (boiler, solar) | Ø 26/34 M | Ø 26/34 M | Ø 26/34 M |
| Secondary pool | PVC Ø 63 or 50 | PVC Ø 63 or 50 | PVC Ø 63 or 50 |
| Flow rate (m3/h) | |||
| Primary climate system (boiler, solar) | 0,9 | 1,7 | 3 |
| Secondary pool | 10 | 15 | 20 |
| Head losses (mca) | |||
| Primary climate system (boiler, solar) | 0,15 | 0,2 | 0,3 |
| Secondary pool | 0,5 | 0,8 | 1 |
* Private outdoor swimming pool, soft area, from April 15 to October 15, with thermal blanket.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
-
