Galactic Monobloc Filter AstralPool
€395.00
In stock
Only %1 left
SKU
C-74471
Free Shipping
Best Price Online

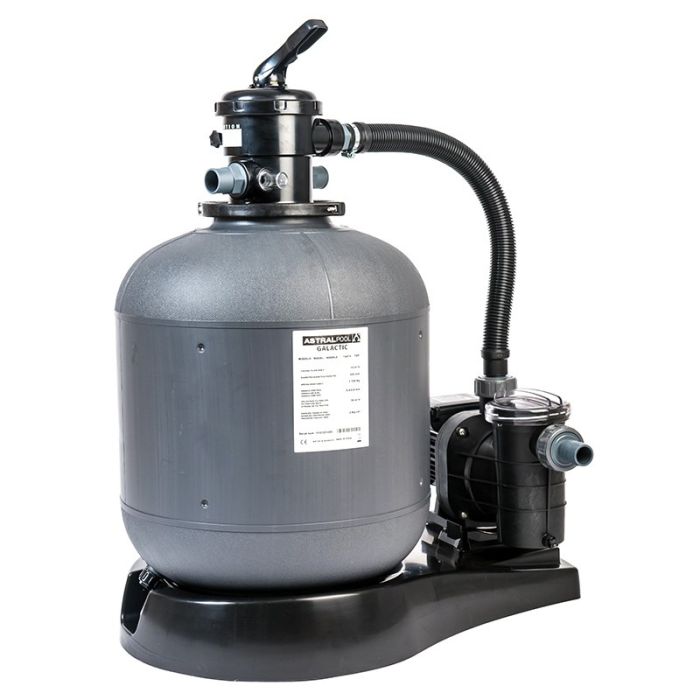

Filtration monobloc for in-ground and above-ground pools. The AstralPool Galactic Kit includes a blown sand filter with a 6-way selector valve and a compact self-priming filtration pump.
Available from Ø380 to Ø600 mm and various powers, to adapt to the water volume of each pool.
Manuals
AstralPool Galactic Monobloc Galactic Filter Instruction Manual
AstralPool Galactic Monobloc Filter Technical Data Sheet
AstralPool Galactic Monoblock Filter
AstralPool professional filtration monobloc for in-ground and above-ground pools.
- Filter made of high resistance thermoplastic material (high density PE) molded by blowing process, in elegant anthracite color.
- 6-way selector valve (filtration, washing, rinsing, recirculation, emptying and closed) with pressure gauge, sight glass, manual air purge and water purge.
- Compact self-priming pump with pre-filter, 3 meters of electric cable and plug.
- Flexible hose to connect pump and filter, fittings, base and accessories to completely assemble the filtering assembly.
- Includes D38 and D50 mm connection fittings for maximum installation flexibility (with hoses or PVC pipe).
- Working pressure: 1,2 bar
- Maximum working pressure: 2,4 bar
- Complies with filtration requirements according to EN 16713-1.
Dimensions Monobloc Galactic AstralPool
| Dimensions | 74471 | 74472 | 74473 | 74474 | 74475 | 74476 |
| Ø (mm) | 380 | 400 | 500 | 500 | 600 | 600 |
| H (mm) | 860 | 905 | 975 | 975 | 1030 | 1030 |
| B (mm) | 710 | 710 | 830 | 830 | 830 | 830 |
| C (mm) | 635 | 650 | 740 | 740 | 816 | 816 |
| D (mm) | 295 | 295 | 295 | 295 | 295 | 295 |
Technical Characteristics Monobloc Galactic AstralPool
| Code | Flow rate (m³/h) |
Ø Filter (mm) |
Pump power (HP) |
Ø Connections (mm) |
Sand load (kg*) |
Box weight (kg) |
Carton dimensions (mm) |
| 74471 | 5 | 380 | 1/3 | 38 / 50 | 40 | 20 | 790 x 600 x 700 |
| 74472 | 6 | 400 | 1/3 | 38 / 50 | 40 | 20,5 | |
| 74473 | 8 | 500 | 1/2 | 38 / 50 | 100 | 24 | 870 x 600 x 715 |
| 74474 | 10 | 500 | 3/4 | 38 / 50 | 100 | 25,5 | |
| 74475 | 12 | 600 | 3/4 | 38 / 50 | 150 | 29 | 870 x 600 x 800 |
| 74476 | 14 | 600 | 1 | 38 / 50 | 150 | 30 |
Warranty Information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
