Dolphin C7 pool cleaner for public pools

Manuals

User's manual

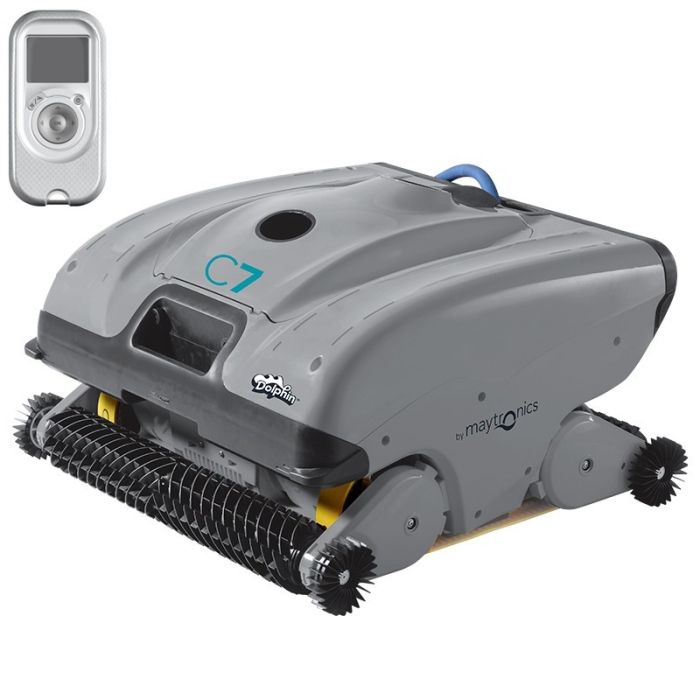

Dolphin C7

The Dolphin C7 is a pool cleaner for public pools up to 25 meters in length, featuring the CleverClean scanning system for perfect pool coverage

Dolphin C7 public pool cleaner features

• High filtration capacity and easy cleaning.
• Remote control allows you to manually control the cleaner to clean hard to reach places or places that were not included during the standard cleaning cycle.
• It has 3 automatic cleaning cycles of 4, 5 or 6 hours or manual direction control with the remote control supplied with the equipment:
  • In automatic mode
    • Fast cycle (4 hours)
    • Efficient cycle - default setting - (5 hours)
    • Extra cycle (6 hours)
  • In manual steering control mode with remote control
• Includes transport and storage cart.
• With top-loading cartridge filter basket. Large capacity fine filter (100 micron) (9,700 cm² filtration surface) to ensure dirt and debris collection.
• It has a dual-direction active brushing system: two active brushes rotating at 1.5 times the speed of the robot. Four brushes on the sides to access and clean corners.
• With Swivel anti-knot device that prevents the Dolphin C7's 35-meter cable from winding up.
• Digital power supply.
• CleverClean scanning system to ensure optimal coverage of the pool surface thanks to a precise navigation system.

Comparison of Dolphin Pool Cleaners Range

*Scroll horizontally to view the complete table.

	C5	C6	C7
Code	500963	500973	500929
Background	Yes	Yes	Yes
Walls	Yes	Yes	-
Waterline	Yes	Yes	-
Brushes	2	2	2
Filtration	Fine bag	Fine bag + ultrafine	Cartridge
Filter access	Lower	Lower	Upper
Remote Control	Yes	Yes	Yes
Cycle time (h)	1/3	4/6/8	4/5/6
Programmer	-	Weekly	-
Anti-knot Swivel	Yes	Yes	Yes
Cable length (m)	24	30	35
Transport Trolley	Yes	Yes	Yes
Recommended pool length (m)	20	25	50
Warranty	3 years	3 years	3 years

Warranty information

3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th. See conditions in the Warranty Document.

*The correct operation of the equipment cannot be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, it contains slime or algae or the filters are clogged by excess dust, and a total cleaning of the pool has not been previously performed, in addition to any pool with irregular surfaces on the walls such as ribs, including pool steps.
