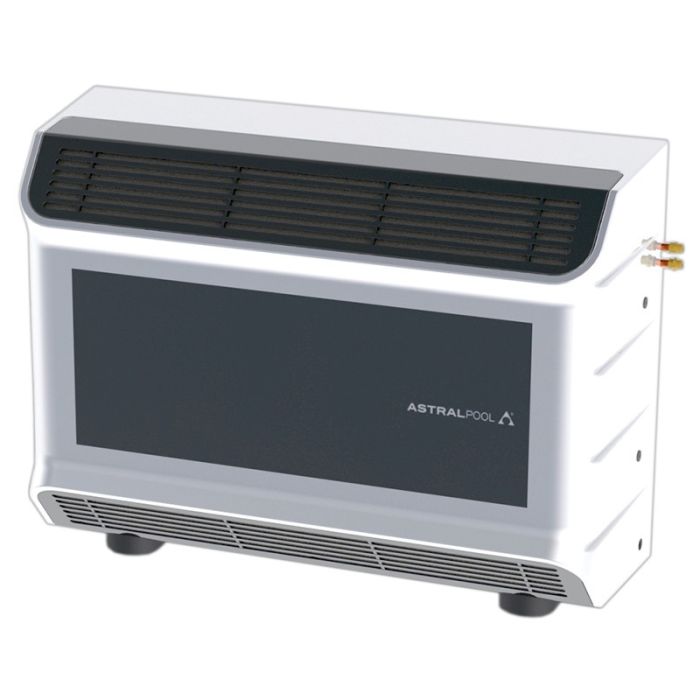

CDP Line 2 Dehumidifier
The CDC Line 2 dehumidifier is used in installations where individual temperature and humidity control is required for each zone. It takes advantage of the latent heat of vaporization and the equipment's own performance to heat the ambient air in small swimming pools, changing rooms, etc.
Dehumidifier CDP Line 2
One of the innovations of this dehumidifier is its structure, made of expanded polypropylene (EPP), which reduces both weight and sound level.
It consists of a monoblock evaporator and condenser coil with copper piping with special aluminum fins for corrosive environments. It also has a hermetic silencer compressor with internal protection and crankcase resistance. The refrigeration circuit is made of nitrogenated, dehydrated and deoxidized copper. The heliocentrifugal fans are more reliable and silent.
Installation and maintenance is simple. You can install it quickly and clean the filters and the machine easily.
You can easily mount the unit on the wall thanks to the new mounting system. Likewise, the new front is light and easy to install. Moreover, if you want to personalize the front with a photo, you can do it.
- Expanded polypropylene structure
- With hot water or electric battery
- Easy to clean
Operating conditions
- Installation air temperature: 28ºC
- Humidity: 65%.
- Minimum installation air temperature: 18ºC
Range comparison
| CDP Line-2 | CDP Line-3 | CDP Line-4 | CDP Line-5 | |
|---|---|---|---|---|
| Dehumidification Cap. | 2 l/h | 3 l/h | 4 l/h | 5 l/h |
| Water bat. heating capacity | 6000W | 6000W | 12000W | 12000W |
| Heating capacity electric bat. | 4000W | 4000W | 5000W | 5000W |
| Voltage | 230 / 50 / I+N | |||
| Fan | 1.100 (Centrifugal) | |||
| Pressure loss (water) | 10 | 60 | ||
| Pressure loss (air) | 80 | 150 | ||
| Casing - structure | EPP + POLYCARBONATE + PMMA | |||
| Refrigerant | R410-A | |||
| Water connection | 1/2 " | |||
| High pressure alarm | 24 - 18 ba / 350 - 260 psi | |||
| Low pressure alarm | 0.7 - 2.2 bar / 10 - 32 psi | |||
| Noise | Level 1 mts : 62 dB Level 3 mts : 58 dB |
|||
SKU Referenced:
- 65891
- 65892
- 65893
- 65894
- 65895
- 65896
- 65897
- 65898
- 65899
- 65900
- 65901
- 65902
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27.
-
