Technical Data Electric Pool Heater Nano Splasher Elecro

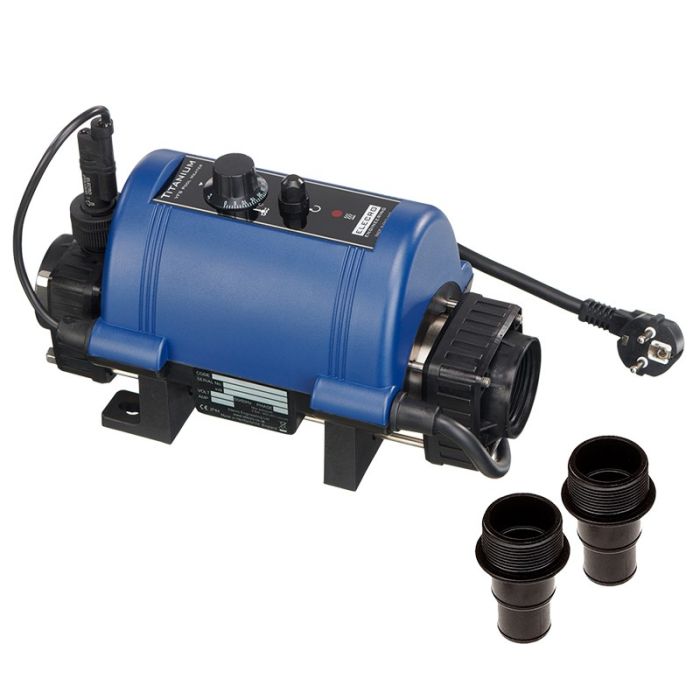

Electric pool heater Nano Splasher Elecro

3 kW electric heater recommended for above-ground and in-ground pools with a maximum volume of 25 m³.

Easy "Plug & Play" installation.

It incorporates thermostat and, thanks to its titanium shielding, it hardly requires maintenance.

Nano Splasher electric heater features

• Power supply: 220-240V single-phase
• Flow specifications:
  • Minimum = 1 m³/h
  • Maximum = 17 m³/h
• Resistance: titanium
• Tube: stainless steel BS 316 (EN 1.4432)
• Control thermostat: 0 ~ 40°C (1°C graduation)
• Safety thermostat: 55°C (manual reset)
• Flow detector: contact wire coated with a thin gold layer and titanium shaft
• Wiring: with high temperature, silicon sheath and stranded copper conductors
• Seals: special high temperature polymer formulation
• Water connections: 1½" BSP female thread, with adapters to connect to flexible tubing
• Operating pressure: 4 bar maximum
• Installation: floor or wall fixing (vertical or horizontal)
• Application of standards: European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC
• Standardized norms: EN 55014 - EN55104, EN5501, EN5502, CEI 801-4, CEI 801-2, CEI 801-3. / The European Low Voltage Directive 72/23/EEC / The Harmonised Standard EN 60335-2-35.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
