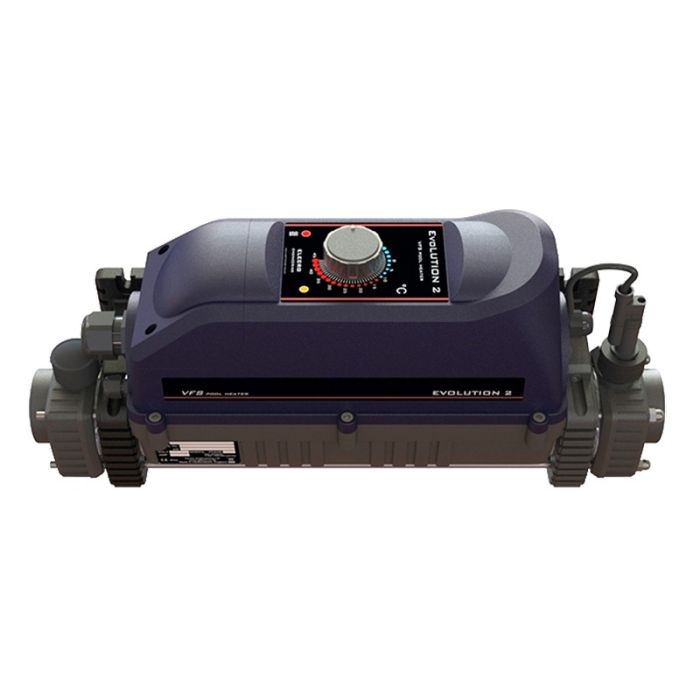

Electric pool heater Evolution 2 Elecro

Elecro Evolution 2 electric pool heater for heating the pool water, allowing to extend the summer season and the swimming season.

Easy to use, just connect them to the filtration circuit at the outlet of the purifier. Once filtered, the water is then heated.

Minimum flow rate of 1,000 l/h for 3 and 6 kW models and 4,000 l/h for 9 and 24 kW models.

Recommended for in-ground, removable and inflatable pools.

Evolution 2 Elecro electric heater features

• Stainless steel tube with titanium heating elements.
• Analog control thermostat (1ºC graduation).
• Easy to use, just connect them to the filtration circuit at the outlet of the water treatment plant. In this way, the water, once filtered, is heated.
• Minimum flow rate of 1,000 l/h for models from 3 to 6 kW, and 4,000 l/h for models from 9 to 24 kW.
• Maximum flow rate of 17,000 l/h.
• Titanium heating elements that guarantee the compatibility of the equipment with salt chlorination pools.
• Stainless steel pipes BS 316L.
• Control thermostat: 0 > 45°C (1°C differential).
• Safety switch: 60°C (manual reset)
• Flow detector: contact wire coated with a thin gold layer and titanium shaft
• Seals: special high-temperature polymer formula
• Operating pressure: 4 bar maximum
• Installation: floor or wall mounting (vertical or horizontal)
• Application of standards: European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC

Standardized norms: EN 55014 - EN55104, EN5501, EN5502, CEI 801-4, CEI 801-2, CEI 801-3. / The European Low Voltage Directive 72/23/EEC / The Harmonised Standard EN 60335-2-35.

All models / sizes available for this product are listed below:

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
