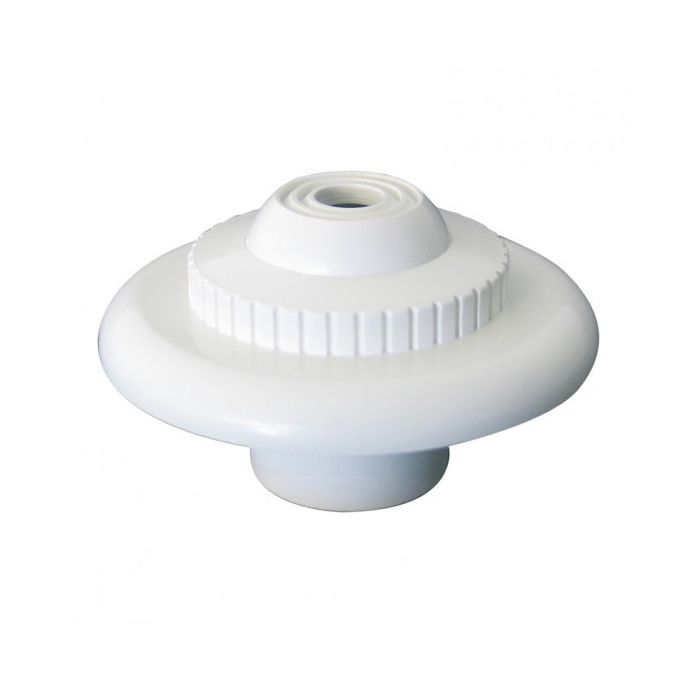

Multiflow impulsion nozzle for gluing concrete pool AstralPool

The Multiflow System consists in the fact that the nozzle ball is supplied pre-marked with a series of diameters (14-20 and 25). With the help of a punch, one of the diameters can be selected at the time of installation.

Manufactured in white ABS.

To be glued to Ø 50 mm PN 10 pipe.

Water outlet through a Ø 20 mm hole (not Multiflow).

Complies with EN 16582-1 and EN 16713-2.

Maximum flow rate recommended for a maximum flow velocity of 4 m/s:

• Ø 14 mm = 2.2 m3/h.
• Ø 20 mm = 4,5 m3/h
• Ø 25 mm = 7 m3/h

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
