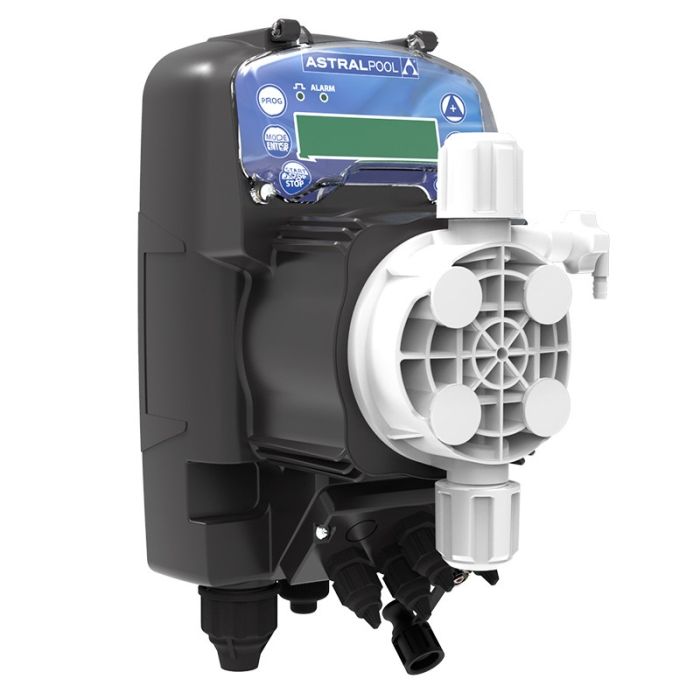

AstralPool Acqua Two digital dosing pump
The digital metering pumps of the Acqua Dos series with constant flow rate can be adjusted to the following settings manually by means of a keypad mounted on the front panel, which displays the dosed flow rate in pulses/minute on the display.
Available in 3 models with different flow rates.
Manuals
User manual AstralPool Acqua Dos digital dosing pump
AstralPool Acqua Dos digital dosing pump technical sheet
AstralPool Acqua Dos digital dosing pump
The digital dosing pumps of the Acqua Dos series have a manual priming pump for starting. The pump head is made of PVDF, so it has a high chemical compatibility with various liquids.
The pump is equipped with a complete standard installation kit, which includes: PVDF bottom filter and injection valve, PVC suction pipe and PE supply pipe.
Technical Characteristics AstralPool Acqua Dos digital dosing pump
- Flow rates: from 4 to 110 l/h (depending on the model).
- Maximum back pressure: up to 16 bar
- Power supply: 100÷240 Vac - 50/60 Hz
- Displacement rate: from 160 to 300 strokes / minute (depending on the model).
- Pump head in PVDF for high chemical compatibility.
- Diaphragm: PTFE
- Outer casing: glass fiber reinforced PP
- Degree of protection: IP65
- Manual priming valve for start-up.
- Installation kit included:
- PVDF foot filter.
- PVDF injection valve.
- PVC suction pipe (4 meters).
- PE delivery pipe (2 meters).
- Wall mounting bracket.
*Scroll horizontally to view the complete table.
| Code | Pump type | Pressure (bar) |
Flow rate (l/h) |
Imp/min | cc/imp | Connection | Power supply | Consumption | ||
| Aspiration | Impulsion | Min. | Max. | |||||||
| 75091 | Type B | 12 | 4,0 | 160 | 0,42 | 4/6 | 4/6 | 100÷240 Vac | 17,0 | 22,0 |
| 10 | 5,0 | 0,52 | ||||||||
| 8 | 6,0 | 0,63 | ||||||||
| 2 | 8,0 | 0,83 | ||||||||
| 75092 | Type C | 16 | 7,0 | 300 | 0,39 | 4/6 | 4/6 | 100÷240 Vac | 22,0 | 33,0 |
| 10 | 10,0 | 0,56 | ||||||||
| 5 | 15,0 | 0,83 | ||||||||
| 1 | 18,0 | 1,00 | ||||||||
| 75093 | Type D | 5 | 20,0 | 300 | 1,11 | 8/12 | 8/12 | 100÷240 Vac | 29,0 | 37,0 |
| 4 | 32,0 | 1,78 | ||||||||
| 2 | 62,0 | 3,44 | ||||||||
| 0 | 110,0 | 6,11 | ||||||||
Dimensions of AstralPool Acqua Dos dosing pump
Warranty information
3 years from the manufacturer according to Royal Decree-Law 7/2021 of 27 April. See conditions in the Warranty Document.
-
