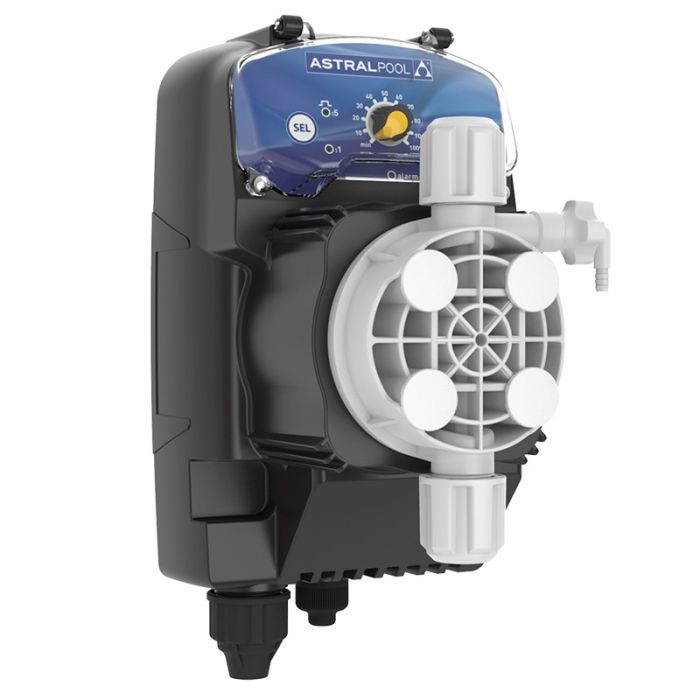

AstralPool Acqua Two analog dosing pump
€379.00
In stock
Only %1 left
SKU
C-75088
Free Shipping
Best Price Online
The Acqua Dos series analog metering pumps with constant flow rate can be manually adjusted by means of a knob mounted on the front panel.
Available in 3 models with different flow rates.
Manuals
Instruction manual dosing pump AstralPool Acqua Dos analogical dosing pump
AstralPool Acqua Dos analogue dosing pump data sheet
AstralPool Acqua Dos analogue dosing pump
All Acqua Dos series have a manual priming pump for start-up.
The pump is equipped with a complete standard installation kit, including: PVDF bottom filter and injection valve, PVC suction pipe and PE supply pipe.
The flow rate has two frequency ranges:
- 0÷20% of maximum flow rate.
- 0÷100% of maximum flow rate
Technical Characteristics AstralPool Acqua Two analog dosing pump
- Flow rates: from 4 to 110 l/h
- Max. back pressure: up to 16 bar
- Power supply: 100÷240 Vac - 50/60 Hz
- Stroke rate: from 160 to 300 strokes/minute
- Pump head: PVDF
- Diaphragm: PTFE
- Outer casing: Glass fiber reinforced PP
- Degree of protection IP65
- Manual priming valve
- Installation kit: Included
- PVDF foot filter.
- PVDF injection valve.
- PVC suction pipe (4 meters).
- PE delivery pipe (2 meters).
- Wall mounting bracket.
*Scroll horizontally to view the complete table.
| Code | Pump type | Pressure (bar) |
Flow rate (l/h) |
Imp/min | cc/imp | Connection | Power supply | Consumption | ||
| Aspiration | Impulsion | Min. | Max. | |||||||
| 75088 | Type B | 12 | 4,0 | 160 | 0,42 | 4/6 | 4/6 | 100÷240 Vac | 17,0 | 22,0 |
| 10 | 5,0 | 0,52 | ||||||||
| 8 | 6,0 | 0,63 | ||||||||
| 2 | 8,0 | 0,83 | ||||||||
| 75089 | Type C | 16 | 7,0 | 300 | 0,39 | 4/6 | 4/6 | 100÷240 Vac | 22,0 | 33,0 |
| 10 | 10,0 | 0,56 | ||||||||
| 5 | 15,0 | 0,83 | ||||||||
| 1 | 18,0 | 1,00 | ||||||||
| 75090 | Type D | 5 | 20,0 | 300 | 1,11 | 8/12 | 8/12 | 100÷240 Vac | 29,0 | 37,0 |
| 4 | 32,0 | 1,78 | ||||||||
| 2 | 62,0 | 3,44 | ||||||||
| 0 | 110,0 | 6,11 | ||||||||
Dimensions of AstralPool Acqua Dos dosing pump
Warranty information
3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th. See conditions in the Warranty Document.
