Mini Gre heat pump
Gre heat pump for heating water in above ground pools.
Available in 3 models to suit pools up to 40 m³.
Manuals
Instruction Manual Mini Gre Heat Pump

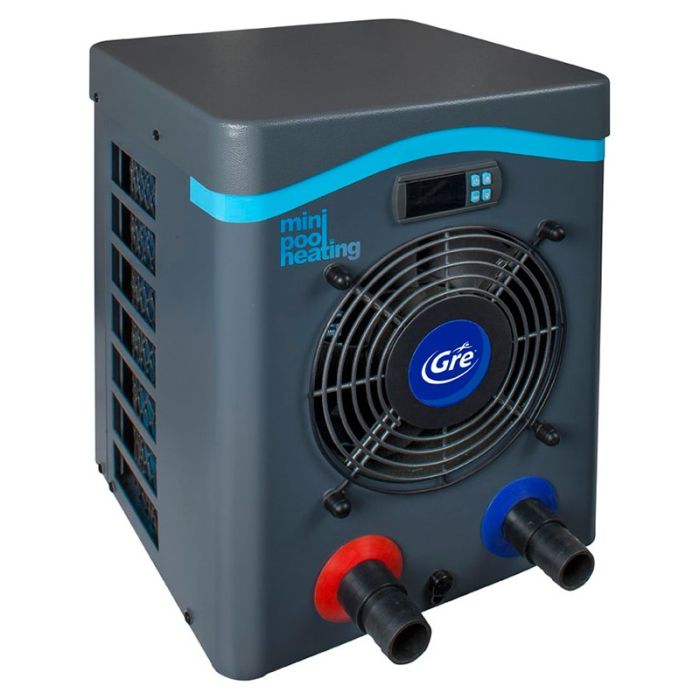

Mini Gre Heat Pump
Mini heat pump of the Gre brand for the heating of above ground pools with small volumes of water (up to 40 m³ depending on the model).
It allows to extend the bathing season and to use the pool for a longer period of time.
- Simple and quick installation in the pool filtration circuit (no bypass required).
- Connections 32 and 38 mm.
- Energy efficiency. The heat pump is the most efficient method of heating a swimming pool.
- Designed for outdoor installation in a ventilated area.
| Models | HPM20 | HPM30 | HPM40 |
| Minimum/maximum temperature | +12°C / +42°C | ||
| Air capacity 28ºC / water 28ºC, Humidity 80%. | |||
| Heating capacity (kW) | 2,5 | 4,2 | 5,5 |
| Power consumption (kW) | 0,59 | 1,0 | 1,31 |
| COP (coefficient of performance) | 4,2 | 4,2 | 4,2 |
| Air capacity 15ºC / water 26ºC, Humidity 70%. | |||
| Heating capacity (kW) | 1,9 | 3,2 | 4,2 |
| Power consumption (kW) | 0,56 | 0,91 | 1,2 |
| COP (coefficient of performance) | 3,4 | 3,5 | 3,5 |
| Technical Data | |||
| Voltage (V) | 220-240V~50Hz | ||
| Rated current (A) | 2,6 | 4,4 | 5,8 |
| Fuse current (A) | 7,5 | 13 | 16 |
| Recommended pool volume (m³, air 28ºC) | < 20 | < 30 | < 40 |
| Recommended pool volume (m³, air 15ºC) | < 10 | < 16 | < 20 |
| Minimum recommended water flow rate (m³/h) | 2 | 2 | 2,5-3,2 |
| Water pressure (Kpa) | 15 | 15 | 15 |
| Condenser | Titanium in PVC | ||
| Water connection (mm) | 32 - 38 mm | ||
| Fan speed (rpm) | 2500 | 1100 | 1100 |
| Noise level (10 m) dB(A) | 48 | 46 | 46 |
| Noise level (1 m) dB(A) | 57 | 55 | 55 |
| Refrigerant R32 (g) | 150 | 290 | 450 |
| Dimensions and weight | |||
| Net weight (kg) | 18 | 26 | 26 |
| Gross weight (kg) | 19 | 28,5 | 28,5 |
| Net dimension (mm) | 310 x 363,5 x 375 | 434 x 432,5 x 460 | 434 x 432,5 x 460 |
| Packing dimensions (mm) | 365 x 440 x 440 | 485 x 510 x 530 | 485 x 510 x 530 |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
