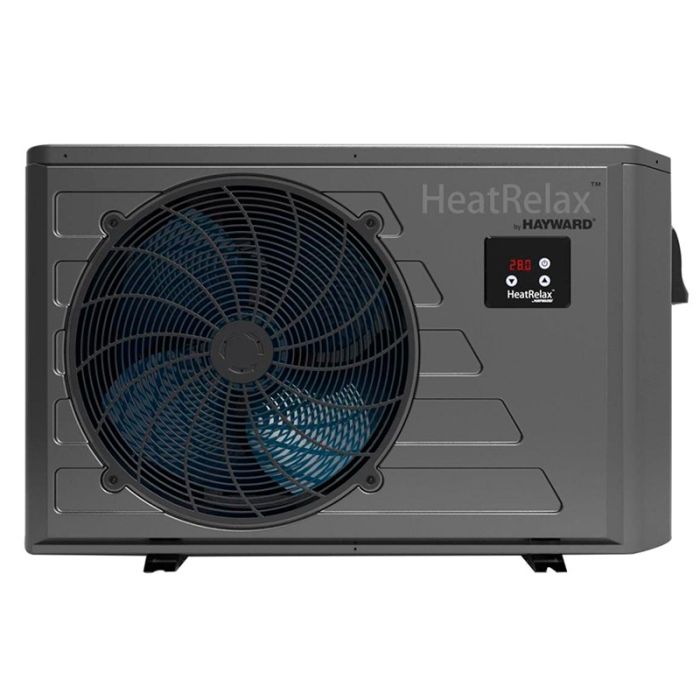

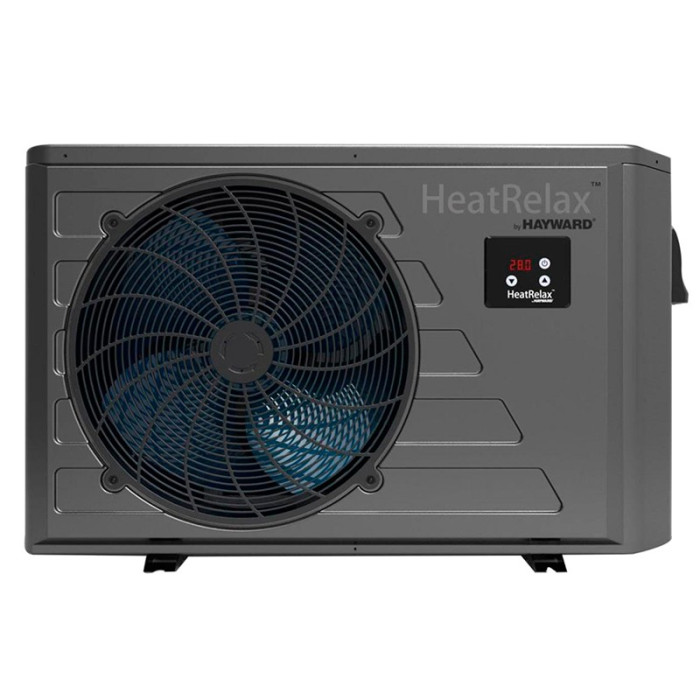

HeatRelax Hayward Heat Pump
Hayward EasyTemp reversible heat pump to keep the water warm in small or medium size pools.
Available in 4 models from 6 to 19 kW.
HeatRelax Hayward Heat Pump
Heat pump for heating water in small to medium sized pools.
Great durability and compatible with all types of pool water treatments such as saline chlorination.
HeatRelax Hayward Heat Pump Features
- Reversible heat pump heat/cold.
- Priority heating function.
- LCD display with inlet and outlet temperature.
- Low noise level thanks to its silent rotary compressor.
- Electronic defrost management for operation down to -2ºC.
- Operating modes: Heating - Cooling - Automatic
| Model | PASRW015 | PASRW020 | PASRW030 | PASRW040 |
|---|---|---|---|---|
| Indicative water volume (m³) | <30 | 20-40 | 30-60 | <85 |
| Heating capacity (*) | 6 kW | 9 kW | 12 kW | 19 kW |
| COP (*) | 5,1 | 5,9 | 5,6 | 5,7 |
| Absorbed electrical power (*) (kW) | 1,1 | 1,56 | 2,16 | 3,31 |
| Absorbed current (*) (A) | 5,01 | 6,91 | 9,71 | 14,39 |
| Water flow rate (m³/h) | 1,8 | 2,8 | 3,6 | 5,3 |
| Power supply (V/Ph/Hz) | 230V 50Hz | |||
| No. of fans | 1 | |||
| Fan power (W) | 90 | 120 | 120 | 150 |
| Fan rotation speed (rpm) | 850 | |||
| Fan direction | Horizontal | |||
| Sound pressure @ 1 meter dB(A) | 66,9 | 68,8 | 69,1 | 68,8 |
| Sound pressure @ 10 meters dB(A) | 35,8 | 37,6 | 37,9 | 37,6 |
| Hydraulic connection (mm) | 50 | |||
| Pressure drop in water (max) (kPa) | 0,3 | 2 | 1,8 | 4 |
| Net weight / packed unit weight (kg) | 37/43 | 51/62 | 54/66 | 84/91 |
| Refrigerant | R410A | |||
(*) Value with +/-5 % with the following conditions: Outdoor temperature 27°C / RH = 78 %. Water inlet temperature 26°C
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
