Self-priming pump PSH ND.2
€295.00
In stock
SKU
Bomba autoaspirante PSH ND.2
Best Price Online
The PSH ND.2 model is the new version of the ND.1 with an updated design and improvements in the pump filtration capacity.
Available in several models according to power.
Manuals
PSH ND.2 Self-priming Pump Technical Data Sheet

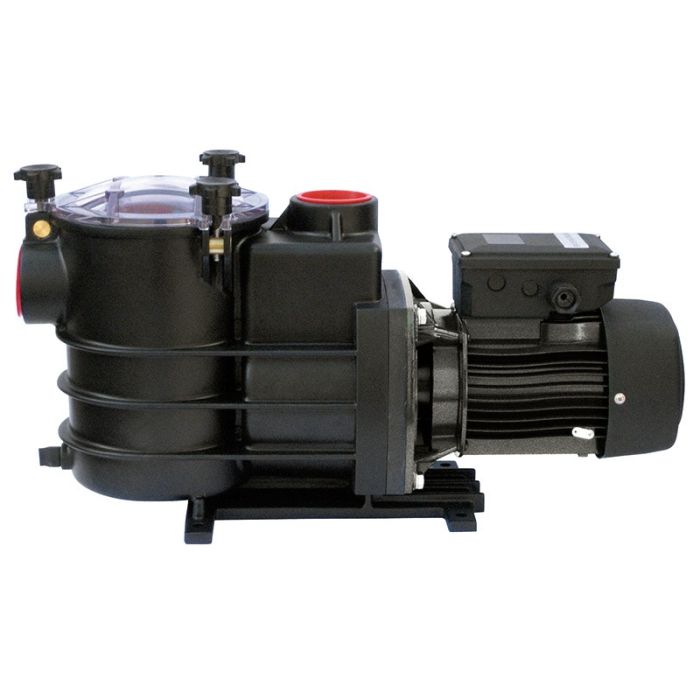

Self-priming pump PSH ND.2
Self-priming centrifugal pump of the manufacturer PSH for swimming pool filtration equipment.
Features PSH ND.2 Self-priming pump PSH ND.2
- The dimensions between the suction and delivery ports and the height have been respected to allow it to be 100% interchangeable with the ND.1.
- Additionally, its dimensions are equivalent to Saci's Winner model, so they are also interchangeable.
- Self-priming centrifugal pump up to 4 mca.
- Suitable for operation with salt chlorinators or seawater.
- Thermal protection included in single-phase versions.
- High quality mechanical seal and bearings for long service life.
- Transparent cover for easy maintenance of the pump.
- Pre-filter basket with high filtration capacity incorporated in the pump body.
- Insulation class: F
- Protection: IP55
- Motor: 50 Hz / 2900 rpm
Materials Pump ND.2
- Pump body: polypropylene 30% fiberglass
- Impeller and diffuser: noryl reinforced with 30% glass fiber
- Pre-filter basket: polypropylene
- Shaft: stainless steel AISI 316
- Mechanical seal: carbon+resin-ceramic
Part numbers: 1ND20080M2V, 1ND20080T4V, 1ND20100M2V, 1ND20100T4V, 1ND20150M2V, 1ND20150T4V, 1ND20200M2V, 1ND20200T4V
*Scroll horizontally to view the complete table.
| Model | Power | Capacitor | II | III | III | Flow rate (m³/h) according to manometric height (m) | Nozzles | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CV | kW | μF | 230V A | 230V A |
400V A |
4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | Input | Output | kg | |
| ND.2-14 | 3/4 | 0,6 | 20 | 3,6 | 2,6 | 1,5 | 14,4 | 13,5 | 12,3 | 10,5 | 8,2 | 5,2 | 1,7 | - | 2" | 2" | 13,6 |
| ND.2-19 | 1 | 0,75 | 25 | 5,4 | 3,9 | 2,2 | 24,3 | 22,0 | 19,6 | 17,3 | 14,5 | 11,3 | 6,6 | - | 2" | 2" | 13,7 |
| ND.2-24 | 1,5 | 1,1 | 31 | 7,0 | 4,4 | 2,5 | 29,3 | 27,2 | 24,8 | 21,5 | 21,5 | 19,1 | 11,3 | 4,6 | 2" | 2" | 17,1 |
| ND.2-28 | 2 | 1,5 | 40 | 9,4 | 5,9 | 3,4 | 35,0 | 32,3 | 29,5 | 26,6 | 23,6 | 19,8 | 15,2 | 9,0 | 2" | 2" | 19,0 |
Warranty Information
Warranty 2 years according to manufacturer's conditions.
