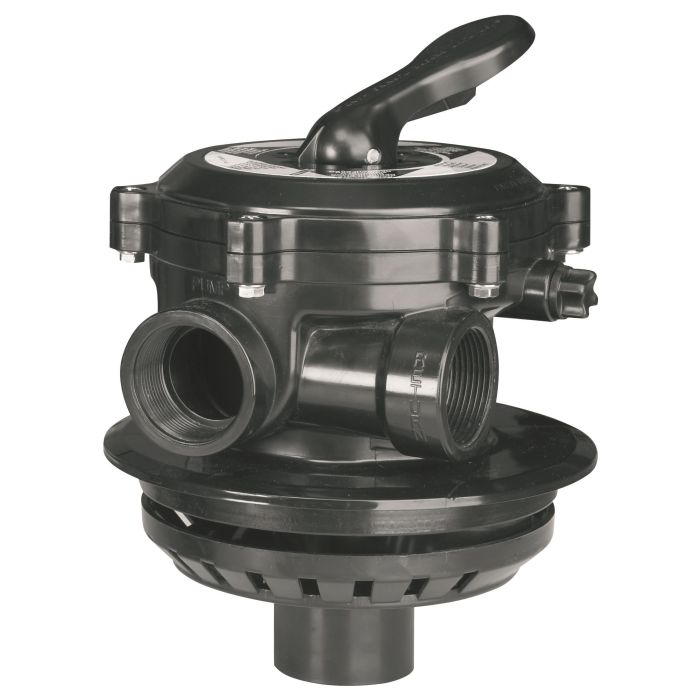

AstralPool Top selector valve 1½'' Flat

Manuals

1½'' Flat Top selector valve installation manual
Catalog AstralPool 1½'' Flat Top selector valve
Spare parts manual 1½'' Flat Top selector valve
1½'' Flat Top selector valve dimensions manual

Features

The application of the Flat valve is recommended for filters up to 550 mm in diameter or with comparable pressure drop levels.

It can perform the same functions as a conventional valve: filtration, backwashing, flushing, emptying, recirculation and shut-off.

• 6 working positions.
• Maximum working pressure 2,5 kg/cm2.
• ABS body, cover and handle. Distributor in PPO.
• Bell with wide turning space with respect to the body.
• AISI-316 stainless steel bolt locking system.
• The design of the distributor avoids possible clogging caused by sand, dirt, etc.
• Maximum mechanical and corrosion resistance.
• Selector valve that incorporates, as main innovation, reduced dimensions thanks to the design of a single level (as opposed to the usual two levels in selector valves).

This smaller size makes it especially suitable for those applications where space is limited, such as houses or monoblocs, where it is remarkable the greater use of the Top model.

Referenced SKU:

• 34546

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27.
