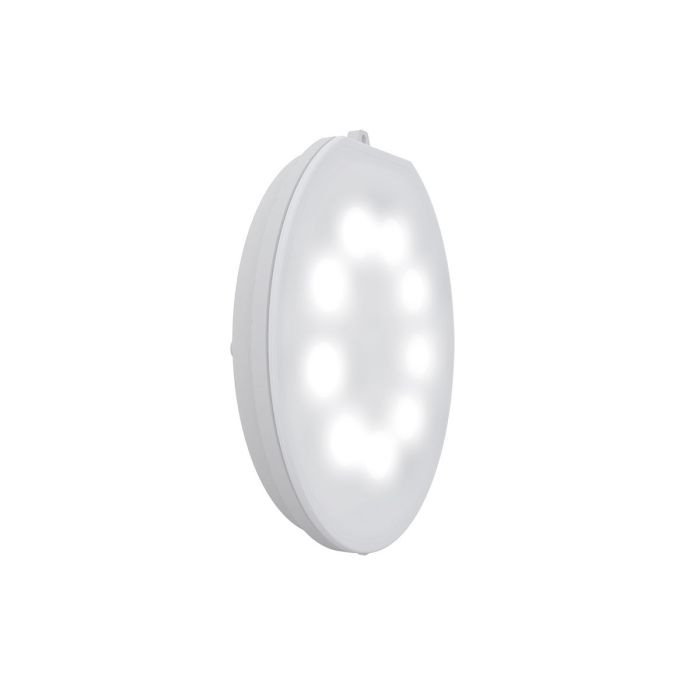

Astralpool Light Point LumiPlus Flexi V1
Catalog
Catalog Astralpool LumiPlus Flexi
Video
The world reference in pool lighting
3 Years Warranty
The light point is necessary for the installation of the LumiPlus Flex V1 either in your pool or in your pool. Niche model o Slim model. Thanks to the AstralPool LumiPlus Flexi V1 light point you can save energy consumption as they are LED projectors with low power consumption.
LumiPlus lamps offer up to 3 times higher performance and thanks to their optical and luminous efficiency, they allow you to optimize your pool installations.
The distribution of light provided by LumiPlus Flexi V1 is homogeneous and can achieve up to a 90% savings in electricity consumption compared to other lamps and thus extend the life of your pool lighting.
Power supply supplied with the FLEXI DC light points.
All light points are supplied with a 2,5m. long electric cable.
3 Apart from this, cables of 5, 10 and 15 m are available.
Available colors for V1 light point
White: the white light spot is ideal if high lighting levels are desired or for use in pools with blue or white backgrounds. Available in AC and DC
Warm white: the warm white light spot is ideal for natural pools or for those pools with beige or sand backgrounds. Available in AC and DC
RGB: The RGB LED light spot offers us multiple alternatives combining the 3 colors ( Red, Blue and Green - RGB - Red, Green, Blue ) to set our pool, it is also available in standard version and wireless version. These models are compatible with LumiPlus Eco, LumiPlus RGB TOP, LumiPlus LED APP (wifi) and LumiPlus Modbus (Fluidra Connect). The RGB wireless model is compatible with the Motion Control.
Intensity
- White / Warm White: 1485 lumens
- RGB: 1100 lumens
Power consumption of light point V1
- White / Warm White: 16 W (AC) and 14 W (DC)
- RGB: 22 W
V1 LumiPlus Flexi V1 Light Point Codes
*Scroll horizontally to view complete table
Points of Light | ||||||||||
AC White | Warm White AC | White DC | Warm White DC | RGB AC* RGB AC* RGB AC* RGB AC* RGB AC* RGB AC* RGB AC | RGB Wireless AC | RGB Wireless AC 1 PL + 1 Control Motion | RGB Wireless AC 2 PL + 1 Control Motion | |||
Code | 71200 | 71200WW | 71201 | 71201WWW | 71203 | 71205 | 71206 | 71207 |
*Choose the most suitable control
Recommendation
To adequately illuminate a pool, it is recommended to install a Lumiplus Flexi V1 every 20m.2 of water surface and at every 25 m2 for the V2 version.
It must always be installed submerged in water.
Warranty information
3-year manufacturer's warranty according to their terms and conditions.
Catálogo
Catálogo Astralpool LumiPlus Flexi ON/OFF
Manuales
Catálogo Astralpool LumiPlus Flexi ON/OFF 24 VDC
Catálogo Astralpool LumiPlus Flexi ON/OFF 12 VAC
Folleto
Folleto Astralpool LumiPlus Flexi ON/OFF
Dibujo Técnico
Dibujo Técnico Lamparas LumiPlus Flexi ON/OFF
Dibujo Técnico Lamparas LumiPlus Flexi ON/OFF 71202
Dibujo Técnico Lamparas LumiPlus Flexi ON/OFF 76573
Garantía
76573
76573WW |
71201 |
71201WW |
71202 |
71202WW |
71236 |
| |
TIPO DE LUZ | BLANCA | BLANCA CÁLIDA | BLANCA | BLANCA CÁLIDA | BLANCA | BLANCA CÁLIDA | BLANCA |
---|---|---|---|---|---|---|---|
VOLTAJE | 12V AC | 12V AC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
POTENCIA | 28 W | 28 W | 14 W | 14 W | 32 W | 32 W | 8,7 W |
CONSUMO | 40 VA | 40 VA | 14 VA | 14 VA | 32 VA | 32 VA | 8,7 VA |
FLUJO LUMINOSO | 2750 lm | 2750 lm | 1485 lm | 1485 lm | 4300 lm | 4300 lm | 1485 lm |
TEMP. DE COLOR | 5.700K | 3.000K | 5.700K | 3.000K | 5.700K | 3.000K | 5.700K |
CRI > | 70 | 80 | 70 | 80 | 70 | 80 | 70 |
ÁNGULO DE FLUJO | 100º | 100º | 100º | 100º | 100º | 100º | 100º |
PROTECCIÓN TÉRMICA | Auto-regulación | Intermitente | Intermitente | Intermitente | Intermitente | Intermitente | |
CLASE ENERGÉTICA Según UE 2019/2015 |
|||||||
INSTALACIÓN EN AGUA SALADA | Si | Si | Si | Si | Si | Si | Si |
SISTEMAS DE CONTROL COMPATIBLE | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ON/OFF |
-
