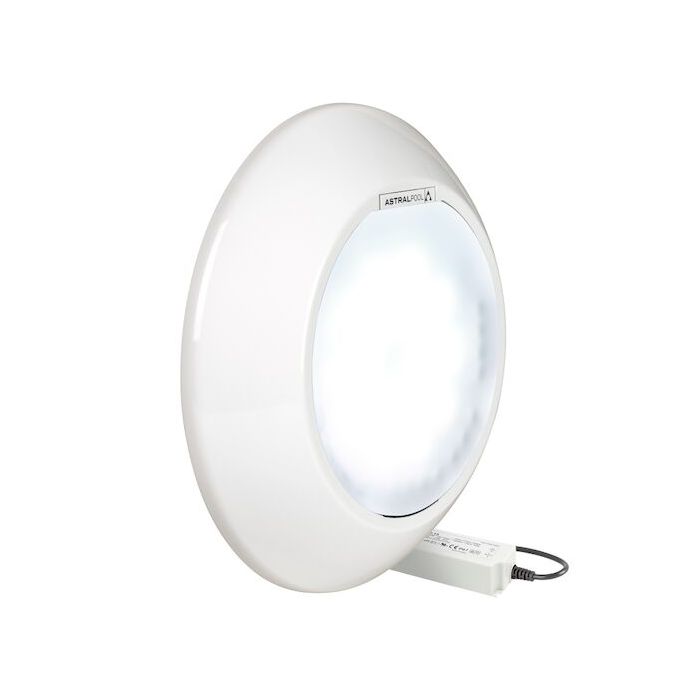

Astralpool LumiPlus FlexiSlim On/Off Projector

AstralPool LumiPlus FlexiSlim On/Off Projector

The LumiPlus FlexiSlim On/Off floodlights are monochromatic underwater luminaires offering white and warm white light, with 12 VAC or 24 VDC power. For convenience, the models with 24 V DC power supply include a power supply.

They are extremely easy to use, as they only need to be switched on to illuminate the pool.

Unlike the FlexiNiche, FlexiSlim floodlights are surface mounted, either attached to the wall of new pools or connected to existing surface connections.

FlexiNiche floodlights are especially versatile, as they fit into any niche with an internal diameter between 180 and 230 mm.

Simple and Adapted Design Light Points

Discover the range of simplified options we offer with our Flexi ON/OFF lamps. Choose between white and warm white. In addition, select the control system that best suits your needs. We also offer a wide range of trim colors, including white, beige, gray, anthracite and stainless steel. And for added convenience, our mounting options range from niche or nozzle installation, to surface mounting or pipe mounting. See the entire LumiPlus Flexi range.

Thanks to intuitive and quick procedures, installation is greatly simplified, further facilitated by trims containing all the required parts. Both Flexi and FlexiMini fit with ease in both retrofits of existing installations and new construction. With a wide range available, there is always a Flexi suitable for every type of pool and specific need.

The world reference in pool lighting

3 Year Warranty

LumiPlus Flexi ON/OFF Designed in Two Components

Install your own projector by following these two steps:

STEP 1:

Selecting the lamp and light type

STEP 2:

Selection of fixing system and trim color.

Dimensions

Technical Characteristics

• VOLTAGE: 12V AC or 24V DC (depending on model)
• FREQUENCY: 50/60Hz
• LIFESPAN LIFE: L70/50.000h
• MAX. TEMPERATURE WATER: 40ºC
• MAX. DEPTH. INSTALLATION: 2m
• MAXIMUM WATER TREATMENT VALUES:
  • Chlorine: 2 mg/l
  • Bromine: 5 mg/l
  • Salt electrolysis (Na Cl): 6 g/l
  • Ph of the pool water: 7,2 and 7,6
• CABLE: 2,5m. H07RN-F 2x1mm2
  Cables from 5 to 30 meters long are available. Consult codes
• MATERIALS: Polyamide

Recommendation

To adequately illuminate a pool, it is recommended to install a Lumiplus Flexi V1 every ^20m2 of water surface and every ^25m2 for the V2 version.

It should always be installed submerged in water.

Warranty information

3-year manufacturer's warranty according to their terms and conditions.
