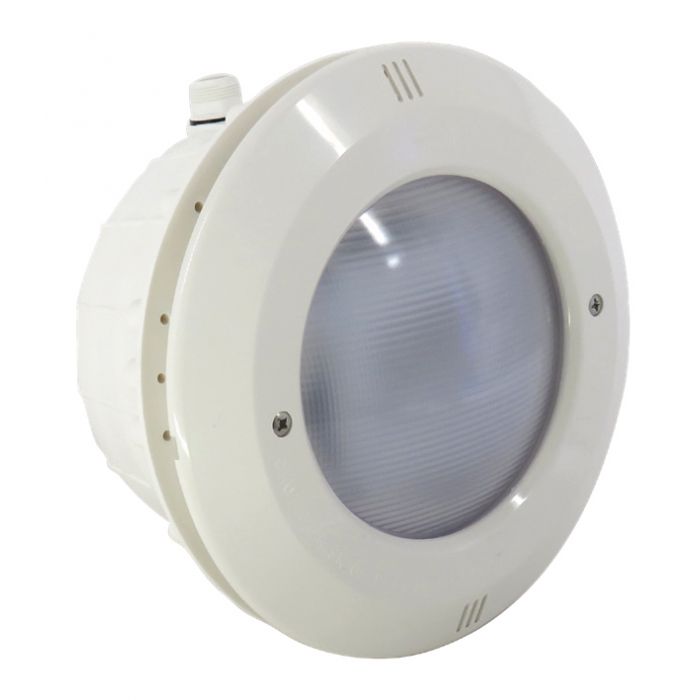

Astralpool Lumiplus Essential LED Projector Kit PAR56 concrete pool
Lumiplus Essential PAR56 recessed LED projector by Astralpool to illuminate your pool.
Available in both white light and RGB light.
LED projectors for concrete pools.
Up to 90% energy savings, 100,000 hours of life.
Complete LED projector kit that incorporates its niche for new construction concrete pool.
Manuals
Astralpool Lumiplus Essential Lighting Catalogue
Astralpool Lumiplus Essential PAR56 LED projector for concrete pools
Astralpool Lumiplus Essential PAR56 LED Projector Electrical Connection Manual
Astralpool Installation Manual Lumiplus Essential LED Projector PAR56
Astralpool Installation Manual Led Projector Lumiplus Essential PAR56 RGB
Astralpool Projector Led Lumiplus Essential PAR56 for concrete pool
Projector recessed LED PAR56 with option of white light or RGB light to illuminate concrete pools.
The LED spotlights with a minimum consumption and a very high luminous capacity, developed to obtain the maximum efficiency in the electrical consumption.
LEDs have a useful life of 100,000 hours compared to 1,000 hours of conventional lamps and each LED spotlight saves more than 90% in energy consumption.
The LED light incorporates maximum brightness LEDs in red, blue and green. The combination of these basic colors results in a myriad of different colors, all very bright and vivid.
Advantages
- Easy installation, ready to use in 10 minutes.
- Best luminous efficacy (lumens per watt; lm/W) of the LumiPlus Essential range, improving energy efficiency over previous ranges.
- Compared to the traditional 300W PAR56 lamp, the new LumiPlus Essential has a 100 times longer lifetime and up to 95% lower energy consumption.
- It complies with the energy efficiency requirements of the new European Directives on Ecodesign applicable to Energy-using Products, which will be mandatory in the coming years.
Features Led Projector Lumiplus Essential PAR56 Astralpool
- For concrete pools
- AC version: 12V AC
- Protection: IP68
- Niche included.
- Must always be installed submerged in water.
Comparison Astralpool Projector Led Lumiplus Essential PAR56 for concrete swimming pool
| Code | Model | Color Light | Consumption | Luminous flux | Voltage | Energy Efficiency |
|---|---|---|---|---|---|---|
| 66828 | LumiPlus Led Essential PAR56 White concrete swimming pool | White Light | 14.5W (20VA) | 1,485 lm | 12 V | E |
| 75437 | LumiPlus Led Essential PAR56 RGB concrete swimming pool | RGB light | 22W (29VA) | 1,100 lm | 12 V | G |
Astralpool lighting recommendations
To properly illuminate a pool, it is recommended to install a lamp from the LumiPlus family every 20 m2 of water surface.
The projectors should always be installed submerged in water.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th. See conditions in the Warranty Document.
Catálogo
Catálogo Iluminación Astralpool Lumiplus Essential
Ficha Técnica
Ficha técnica Astralpool Proyector Led Lumiplus Essential PAR56 para piscina hormigón
Dibujo Técnico
Dibujo Técnico Astralpool Proyector Led Lumiplus Essential PAR56 piscina hormigón
Manuales
Manual Instalación Proyector Lumiplus Essential PAR56
Manual Conexión Eléctrica Proyector Lumiplus Essential PAR56 Monocolor
Manual Conexión Eléctrica Proyector Lumiplus Essential PAR56 RGB
Comparativa Astralpool Proyector Led Lumiplus Essential PAR56 para piscina hormigón
| Código | Modelo | Color Luz | Consumo | Flujo Luminoso | Voltaje | Eficiencia energética |
|---|---|---|---|---|---|---|
| 66828 | LumiPlus Led Essential PAR56 Blanco piscina hormigón | Luz Blanco | 14.5W (20VA) | 1.485 lm | 12 V |  |
| 75437 | LumiPlus Led Essential PAR56 RGB piscina hormigón | Luz RGB | 22W (29VA) | 1.100 lm | 12 V |  |
-
