AstralPool Rapidpool Filter

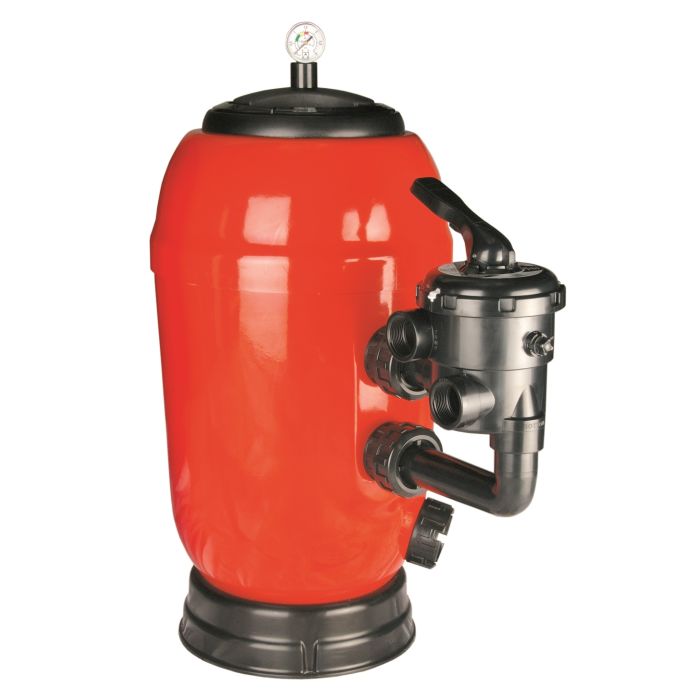

AstralPool Rapidpool filter,high performance laminated filter, manufactured in fiberglass reinforced polyesterin this case with side outlet.
The range of sand filters AstralPool Rapidpool filter provides a high performance in the filtration of your pool by incorporating a larger filtering bed thus achieving a better filtration quality.
Red color, polypropylene foot, screwless lid, sand and water drain plug, pressure gauge and air vent in the lid and side selector valve.
Basic characteristics of the AstralPool Rapidpool Filter
- Laminated sand filters manufactured with polyester resin and high performance fiberglass.. Red color.
· Filter bed height from 545 mm to 785 mm depending on diameter.
- Mounted with 1' collector arms'and diffuser made of unalterable plastic material.
- Equipped with pressure gaugemanual water purge and automatic and manual air purge.
· Sand discharge 2 1/2''..
· Lateral selector valve six-way side selector valve for filtration, washing, rinsing, recirculation, emptying and closing operations.
- Polypropylene foot.
· Screwless cover fast opening and closing.
- Maximum working pressure: 2.5 kg/cm2.
Extended features of AstralPool Rapidpool Filter
- Laminated sand filters made of polyester resin and fiberglass. Red color.
- Assembled with collectors and diffuser made of unalterable plastic material PVC and PP.
- Equipped with pressure gauge and air vent in the lid.
- Incorporates a plug for emptying sand and water.
- Six-way side selector valve for filtration, washing, rinsing, recirculation, emptying and closing operations.
- Polypropylene foot.
- Screwless lid for quick opening and closing.
- Distribution of the collecting arms, increasing to the maximum the filtration height.
- Maximum filtration speed: 50 m3/h/m2.
- Maximum working pressure: 2,5 kg/cm2.
Advantages of the AstralPool Rapidpool Filter
- Filter bed: The larger filter bed and the distribution of the collectors improves the quality of the resulting water after filtration.
- Convenience: The patented lid opening and closing system eliminates the need for traditional screws. As a result, uniform pressure is exerted over the entire section of the sealing gasket and the lid opening operation is facilitated.
- Easy replacement: Since it has a plug for emptying sand, the evacuation-replacement process is easier.
Monobloc AstralPool Rapidpool filter
Rapidpool filters with diameters 400, 500 and 650 mm are available in monobloc sets consisting of a fiberglass reinforced polyester base, a filter with side selector valve, a self-priming Sprint pump and all the necessary accessories.
Their characteristics:
- The monoblocs incorporate a baseplate made of plastic material resistant to atmospheric agents.
- All components are designed for easy packaging and precise fitting.
- They are delivered in pre-assembled packaging.
Range comparison
| Code |
00488-0100 |
00489-0100 | 00490-0100 | 00491-0100 |
|---|---|---|---|---|
| Ø D (mm) | 400 | 500 | 650 | 800 |
| H (mm) | 860 | 1032 | 1126 | 1272 |
| M (mm) | 442 | 527 | 552 | 592 |
| N (mm) | 317 | 402 | 427 | 362 |
| Connections | 1½” | 1½” | 1½” | 2” |
| Flow rate m3/h | 6 | 9 | 15 | 24 |
| Swimming pool m3 approx. (8 h)* | 48 | 72 | 120 | 192 |
| Sand load (kg) | 60 | 130 | 255 | 445 |
| Sand height (mm) | 545 | 571 | 650 | 785 |
| Maximum working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 15 | 22 | 30 | 45 |
| Packing volume (m3) | 0,16 | 0,3 | 0,53 | 0,9 |
Manuals
Download Rapidpool Lateral Outlet Filter technical brochure
Download installation and maintenance manual Rapidpool Lateral Outlet Filter
Features
- Laminated sand filters made of polyester resin and fiberglass. Red color
- Assembled with collectors and diffuser made of unalterable plastic material PVC and PP.
- Equipped with pressure gauge and air vent in the lid.
- Incorporates a plug for sand and water drainage
- Six-way side selector valve for filtration, washing, rinsing, recirculation, emptying and shut-off operations
- Polypropylene foot
- Screwless lid for quick opening and closing
- Distribution of the collector arms, maximizing the filtration height
- Maximum filtration speed: 50 m3/h/m2
- Maximum working pressure: 2.5 kg/cm2
- Filter bed height 0,6 m
Benefits
- Filter bed. The larger filter bed and the distribution of the collectors improves the quality of the resulting water after filtration.
- Convenience. The patented lid opening and closing system eliminates the need for traditional screws. As a result, uniform pressure is exerted on the entire sealing gasket section and the lid opening operation is facilitated.
- Easy replacement. Since it has a sand drain plug, the evacuation/replacement process is easier.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
