AstralPool compact underground Ramses + Sena Pump

Manuals

Maintenance manual Compact buried Ramses
Technical Data Sheet Ramses Underground Compact + Sena Pump

AstralPool compact buried Ramses filter Aster + Sena pump

New Ramses in-ground compact, a single product for all types of pools.

The new Ramses house arises as a solution to a need currently present in our society: reduction of m2 in homes.

Nowadays we need to make the most of the space we have available and for this reason, thanks to the new Ramses shelter and its reduced proportions, we will be able to cover pools of up to 10 x 5 m only by changing the filtration hours, it is one of the smallest shelters on the market and allows to reduce costs both in excavations and at the time of its transport.

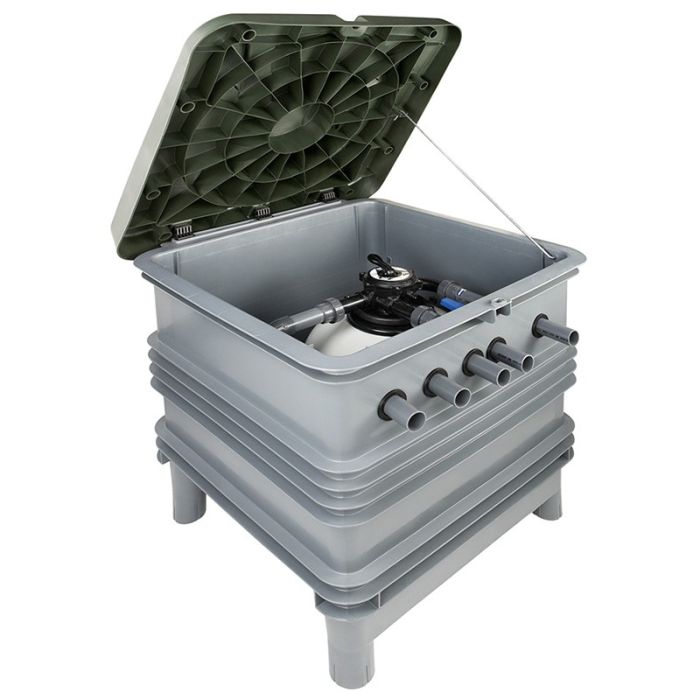

Compact to go underground for swimming pool, formed by a house injected in polymer reinforced with fiberglass and a cover, inside it houses an Aster filter of Ø 550 mm with a manual selector valve FLAT TOP and a recirculation pump Sena of 1 CV.

Now also with the possibility of incorporating additional complements in the assembly of the compact:

• Sel Clear 55 or 95 salt chlorinator.
• pH control.
• Valves for pool filling and shower water supply.

Loading of filtering material (not included):

• Sand: 110 kg
• Glass: 77 kg grade 1 (57011) + 19 kg grade 3 (57013)
