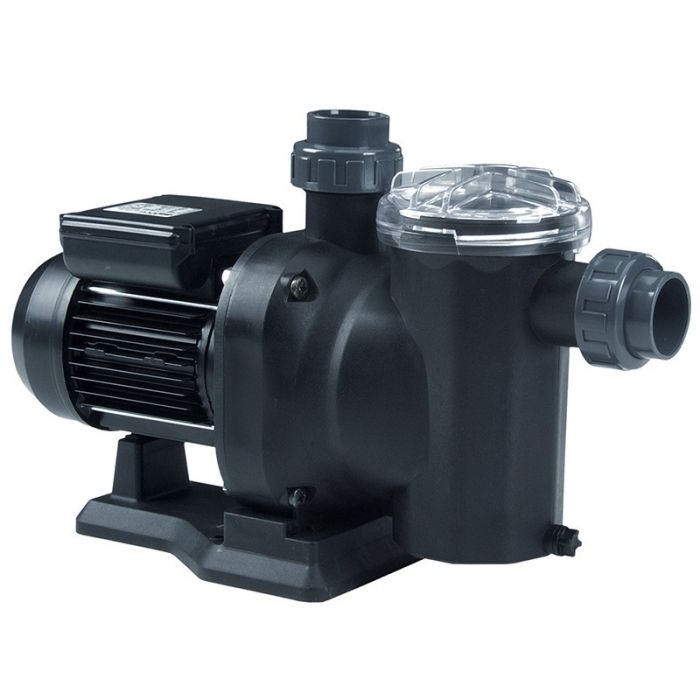

AstralPool Sena Pump
Robust and sober design, new generation pre-filter cover nut easy to handle. Low noise level operation due to the rubber supports on which it rests.
Manuals
Sena pump installation manual
Dimension sheet Sena pump
Sena pump spare parts table
Astrapool Sena pump catalog
*Scroll horizontally to view the complete table.
| Code | Liters/Hour | Power | Power | |
|---|---|---|---|---|
| AstralPool Sena 1/3 HP | 25461 | 7.000 l/h | 0,23kw | Single-phase |
| AstralPool Sena 1/2 CV | 25462 | 7.800 l/h | 0,41kw | Single-phase | AstralPool Sena 3/4 hp | 25463 | 10.400 l/h | 0,56kw | Single-phase |
| 25464 | Three-phase | |||
| AstralPool Sena 1 CV | 25465 | 12.800 l/h | 0,63kw | Single-phase |
| 25466 | Three-phase | |||
| AstralPool Sena 1,25 CV | 25467 | 14.000 l/h | 0,82kw | Single-phase |
| 25468 | Three-phase |
AstralPool Sena Pump
New generation pump range.
With powers from 1/3 CV to 1,25 CV in single-phase motors and from 3/4 CV to 1,25 CV in three-phase motors.
GS marking.
Motor protection IP-55, insulation class F, AISI-316 in all parts in direct contact with water.
Connections to piping by means of a 50 mm. diameter glue sleeve.
Flow rates in l/h at 6 m.c.a. for 0.33 h.p., at 8 m.c.a. for 0.5 h.p. and at 10 m.c.a. for the rest of the range. 3,000 rpm. 7.000l/h
Warranty information
3 years from the manufacturer according to Real Decreto-ley 7/2021, of April 27th.
-
