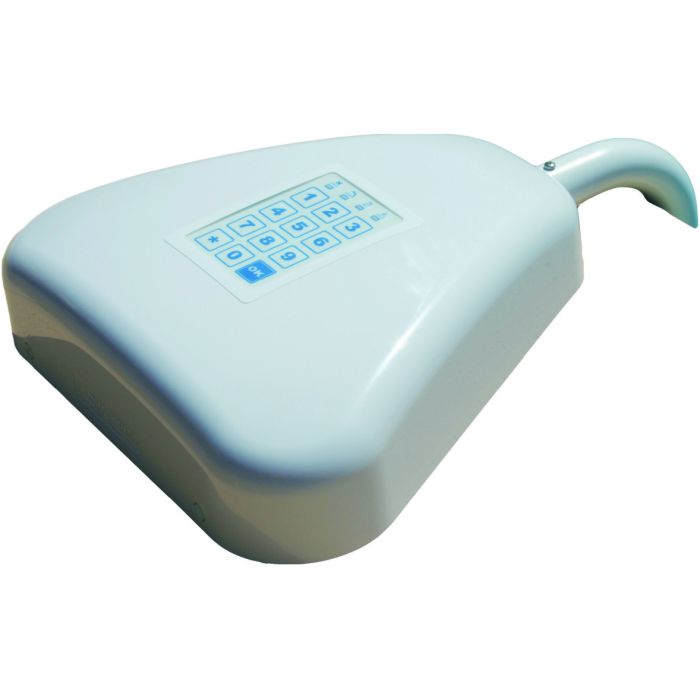

Dolphin Aqualarm pool alarm
It is an alarm system that detects the immersion of a body in a swimming pool and reports it thanks to its powerful integrated sirens. Easy to install: no wiring or plumbing connection. The alarm is activated and inactivated with a personal identification code. Conforms to the most advanced international safety standards (NF 90-307-1).
Manuals
Dolphin Aqualarm Installation Manual
Dolphin Aqualarm pool alarm
Dolphin Aqualarm is an alarm system that detects the immersion of a body in a swimming pool pit, in compliance with the NF P 90-307-1 standard, and warns you thanks to its powerful integrated sirens (115 dB).
AQUALARM consists of two elements:
- The detection and alarm center, which is installed at the edge of the pool.
- The central bypass (optional), which allows to divert the warning and fault signals. It communicates with the control panel by a protected radio link (frequency band: 2.4 GHz).
Technical features
Recommended pool size | Up to 10x5m |
---|---|
Anti-theft system | Integrated |
Automatic alarm reactivation | After each bath |
Electronic panel | Watertight |
Power supply | 4 standard alkaline batteries LR20 1.5 V supplied |
Probe | Submersible |
Indication of system status (batteries, contacts, radio, etc.) | By electrical and audible signal |
Sirens | 2 integrated 115dB |
Color | White |
Box | Shock resistant and UV resistant |
Dimensions/space occupied | 25.5x25.5x25.5x6.5cm |
Warranty information
3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th.
-
