Zodiac MX8 hydraulic pool cleaner

Zodiac MX8 and MX9 Hydraulic Pool Cleaner Tutorial Video Tutorial

Manuals

Zodiac MX8 Pool Cleaner Instructions Manual

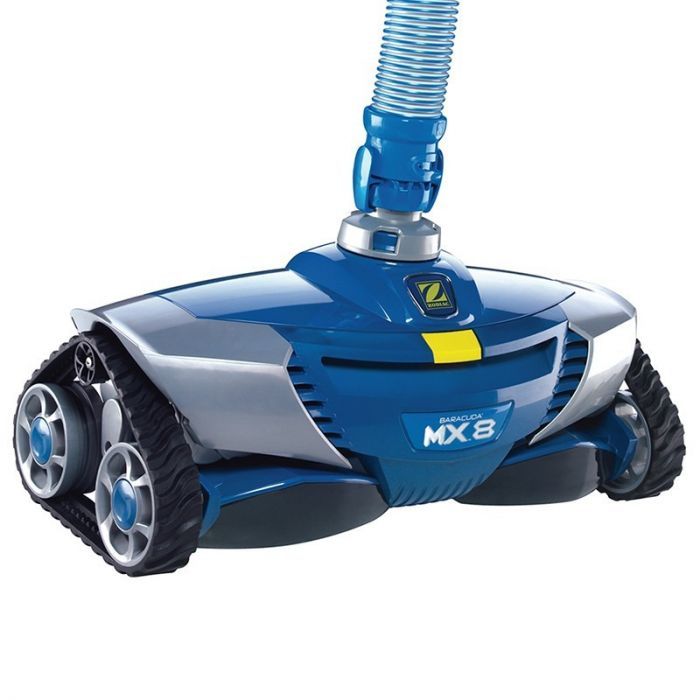

Zodiac MX8 Pool Cleaner

The hydraulic pool cleaners are perfectly adapted to the cleaning of smaller pools and above ground pools. They are connected to the filtration circuit and are more affordable. In addition, they offer a high quality of cleaning.

The MX 8 features an innovative pre-programmed steering system, X-Drive technology, which allows it to automatically change direction. This ensures that the cleaner can methodically scan all areas of your pool, regardless of its shape and bottom type.

The MX 8 suction cleaner features the most innovative hydraulic technology for a perfect clean. A powerful turbine complemented by two cleaning propellers increase its suction power. The traction belts ensure better coverage and travel capacity. Thanks to the combination of these two elements, your cleaner will provide you with unprecedented performance.

Together with the wide suction coverage of the MX 8, you are guaranteed a high cleaning capacity at every step.

With the belt drive, it provides perfect stability in all circumstances. Agile, the MX 8 is able to negotiate any obstacle: sump, lights, coping, stairs...

Features of the Zodiac MX8 robot pool cleaner

• Incorporates Twist Lock hoses without loss of suction. Hose length: 12 sections of 1 m.
• Dimensions of the cleaner: 41 x 22 x 19 cm (width x height x depth).
• Weight: 9 kg.
• New Zodiac automatic pool cleaner for inground pools up to 12 x 6 m.
• Shapes: rectangular, oval, round and free-form.
• Bottoms: flat, gentle slope, compound slope.
• Coatings: gresite, liner, polyester shell, reinforced PVC, painted concrete.
• Connects directly to the pool suction inlet without the need for electrical connection or the installation of an additional pump.
• Turbo suction: two suction propellers and a powerful suction turbine.
• X-Drive navigation system that allows you to clean all areas of the pool.
• Belt drive system for perfect stability and grip.
• Minimum filtration pump power required: ¾ HP (1 HP recommended in gresite pools).
• Displacement speed: 8 m/min.
• Filtering surface / Filtration capacity: Pool filtration circuit.
• Cleaning coverage: 34 cm.
• Optionally available with Zodiac Leaf Catcher prefilter.
• X-Trax. Extreme maneuverability, even in tight curves.
• Cyclonic suction. Large suction width and collection of the largest debris.
• Quick connection. Allows secure and quick attachment to the cleaning head.
• Integrated front handle for easy removal and transport of the equipment.
• Includes accessories such as flow regulator, conical adapter, 45° flexible elbow, automatic flow adjustment valve and 45° elongated elbow.
• Remote control not included.
• Manufacturer's warranty: 3 years.

Option to purchase MX 8 with leaf pre-filter.

Advantages and features of the Zodiac MX8 hydraulic pool cleaner

• Navigation system X-DriveX-Drive navigation system: cleans all pool areas.
• System of by belts  for perfect stability and grip.
• Two suction propellers and one powerful turbine
• Twist Lock hoses: secure connection without loss of suction.
• Simple and reliable.

For what type of pools?

• Types of pools: Inground pools up to 12 x 6 m.
• Shapes: Rectangular, oval, round and free-form shapes.
• Backgrounds: Flat, gentle slope, compound slope.
• Coatings: Gresite, liner, polyester hull, reinforced PVC, painted concrete.

Technical characteristics Zodiac MX8 hydraulic pool cleaner

In Piscinas Ferromar you can discover a wide range of Zodiac hydraulic robotic pool cleaners so you can compare which one best suits your needs:

Comparison of Zodiac hydraulic pool cleaners

*Scroll horizontally to view the complete table.

Hydraulic Cleaners	T3	T5 Duo	MX 8
For pools up to	9 x 5 m	12 x 6 m	12 x 6 m
Cleaning area	Bottom	Bottom / Walls	Background / Walls
Cleaning cycle	A filtration of 6h in cycles of 2h is recommended.	A filtration of 6h in 2h cycles is recommended.	A filtration of 6h in 2h cycles is recommended.
Energy source	Pool filtration equipment	Pool Filtration Equipment	Pool Filtration Equipment
Minimum power of the filtration pump	1/2 HP	3/4 HP	3/4 HP
Displacement	Random	Random	Random
Operating system	DiaCyclone diaphragm	DiaCyclone Diaphragm	Suction turbine and 2 suction propellers
Installation	By the user at the cleaner inlet	By the user at the cleaner outlet	By the user at the cleaner inlet
Type of debris sucked up	Fine and medium	Fine and medium	Fine and medium
Hose length	10 sections of 1 m-	12 sections of 1 m	12 sections of 1 m
Weight of the cleaner>	1.2 kg	1,4 Kg	3,2 Kg
Cleaning cover	30 cm	44 cm	36 cm
Travel speed	6,5 m/min	6 m/min	8 m/min

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.

The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs, or insufficient pump power depending on the liner * *.
