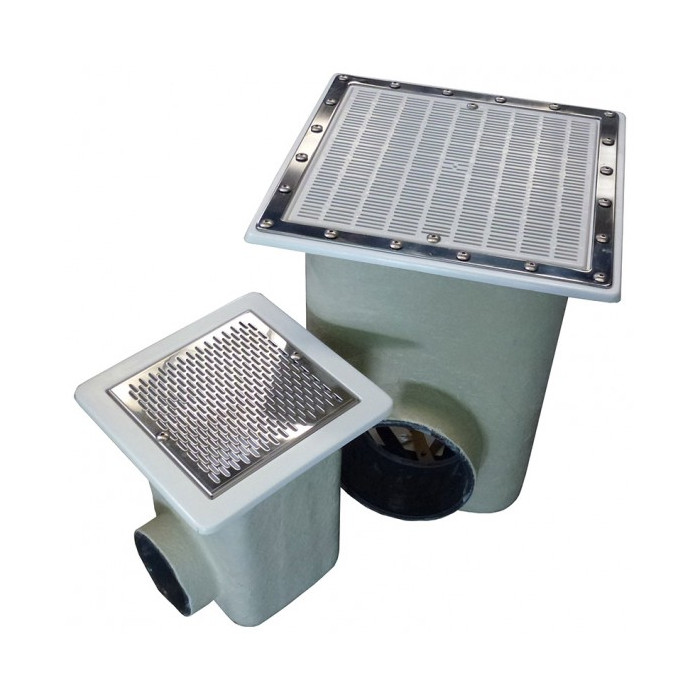

Drain Norm polyester and fiberglass stainless steel grating liner and prefabricated swimming pool

Floor drain Norm polyester and fiberglass stainless steel grating liner and prefabricated pool

Stainless steel grating.
Optional hydrostatic valve.
Minimum installation depth: 1.5 m.
Maximum recommended flow rate at the grate: 103 m3/h (0.5 m/s)

Outlet connection for gluing available in different diameters:

• Code 20076N - Ø 110 mm - Flow rate: 35 m³/h
• Code 20077N - Ø 125 mm - Flow: 47 m³/h
• Code 20078N - Ø 140 mm - Flow rate: 55 m³/h
• Code 20079N - Ø 160 mm - Flow rate: 79,5 m3/h
• Code 20291N - Ø 200 mm - Flow rate: 85 m3/h

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
