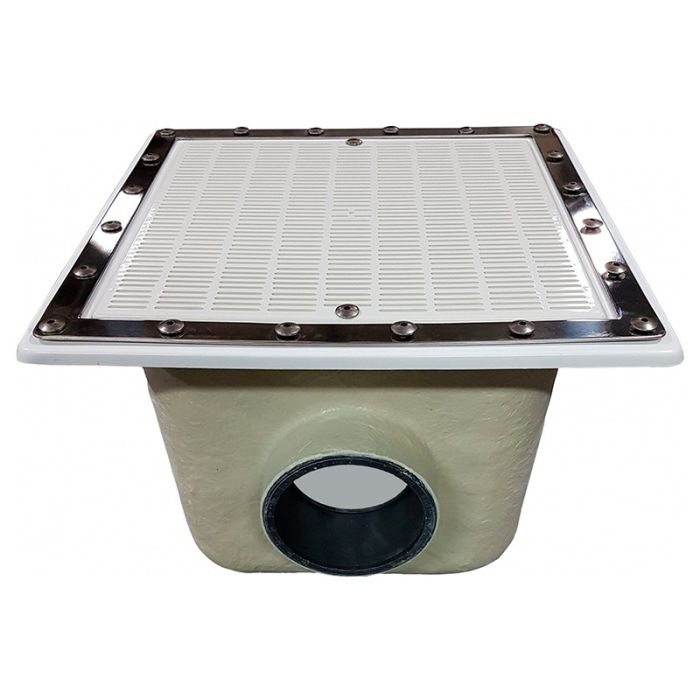

Sump 515x515 GRP plastic grid for liner and prefab pools. AstralPool

AstralPool fiberglass reinforced polyester drain 515 x 515 mm for liner and prefabricated pools.

• Finishing of the piece with gel-coat.
• ABS plastic grating with anti-solar radiation protection (also available with stainless steel grating, see related products), with holes < 8 mm.
• Supplied with stainless steel frame, gaskets and screws.
• Optional hydrostatic valve.

Outlet connection for gluing available in 5 diameters:

• Ø 110 mm - Flow rate: 42 m³/h
• Ø 125 mm - Flow rate: 51 m³/h
• Ø 140 mm - Flow rate: 66 m³/h
• Ø 160 mm - Flow rate: 95 m³/h
• Ø 200 mm - Flow rate: 103 m³/h

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
