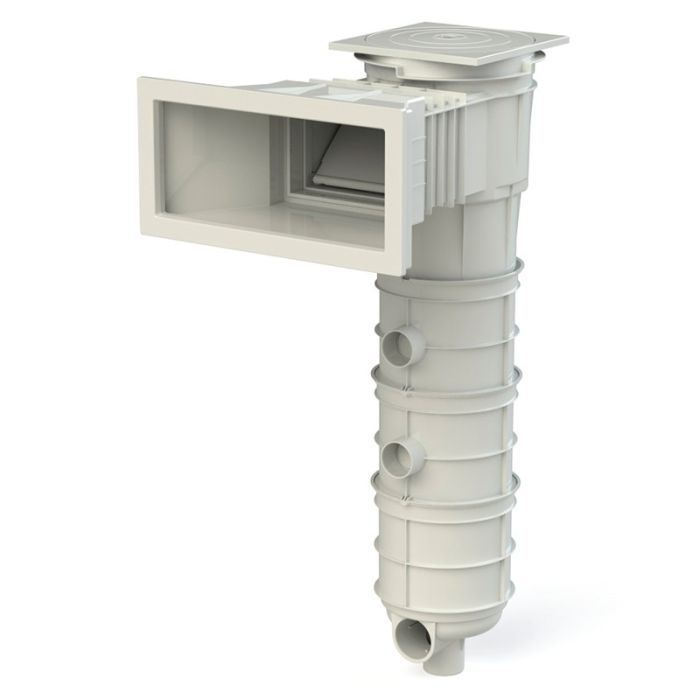

AstralPool filtering skimmer

Skimmer with integrated cartridge filter that simplifies the water purification of residential pools, a 2 in 1 solution.

Water is filtered through the integrated 15 micron cartridge, which provides optimal filtration quality.

Once the water is clean it is sucked by the pump (not included) and sent back to the pool.

Features AstralPool filtering skimmer

• Easy and quick installation: the integrated solution (skimmer + cartridge) saves time in pool installation and significantly reduces costs.
• 2 sizes available:
  • With 2 cartridges 16 m³/h (480 mm head): for pools up to 50 m³ (recommended pump 1 hp / 11.5 m³/h).
  • With 2 cartridges 20 m³/h (600 mm height): for pools up to 80 m³ (recommended pump 1,25 HP / 14 m³/h)
• Available for concrete pools, prefabricated pools and panel pools.
• Made of white ABS with anti-UV treatment.
• Includes hatch, lid height regulator, leaf basket and two filter cartridges.
• EasyColor accessory kit (code 73166) is available as an option. It makes it easy to change the color of the trim and the float without changing the skimmer mouth (very practical to renew the pool or adapt to the color of the liner).
• Conforms to EN-16582-1 and EN-16713-1 standards.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
