Skimmer 17,5 l standard mouth square cover concrete pool AstralPool

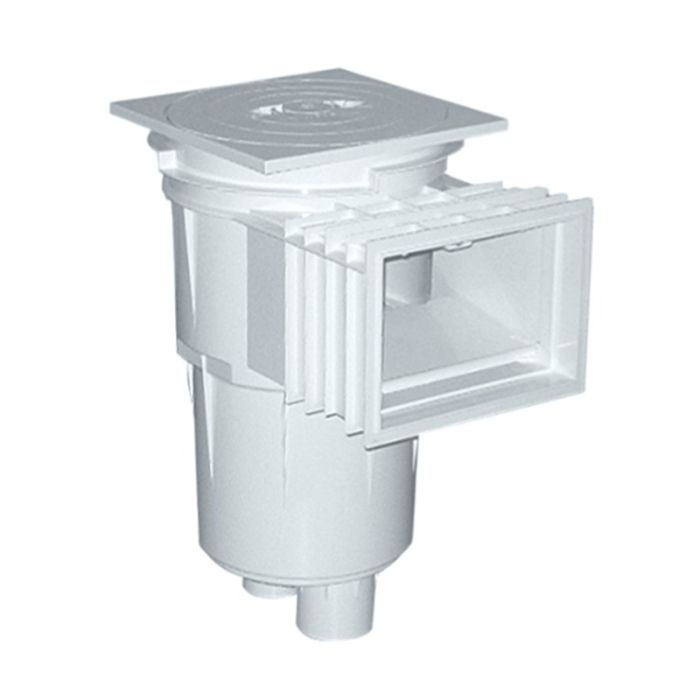

Skimmer AstralPool of 17,5 liters of capacity with standard mouth and square cover with opening system by means of clamps for concrete pools.

• Complies with European standards EN 16582-1 and EN 16713-2.
• With anti-UV treatment in the parts that are not buried.
• Manufactured in ABS, with float gate and plug for flow regulation.
• Connections:
  • Lower suction connection: 1½" internal thread.
  • Simultaneous connection to the sump: 2" inner thread
  • Connection for excess water drainage: Ø 32 mm
• By means of an extensible extension, the height can be adjusted and the cover can be pivoted so that it is perfectly level with the coping stone.
• Includes leaf basket fixed to the base by means of a bayonet locking system.
• Intercalated gate support frame.
• Recommended flow rate: 7.5 m³/h.
• It is recommended to install one skimmer for every 25 m² of water surface.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
