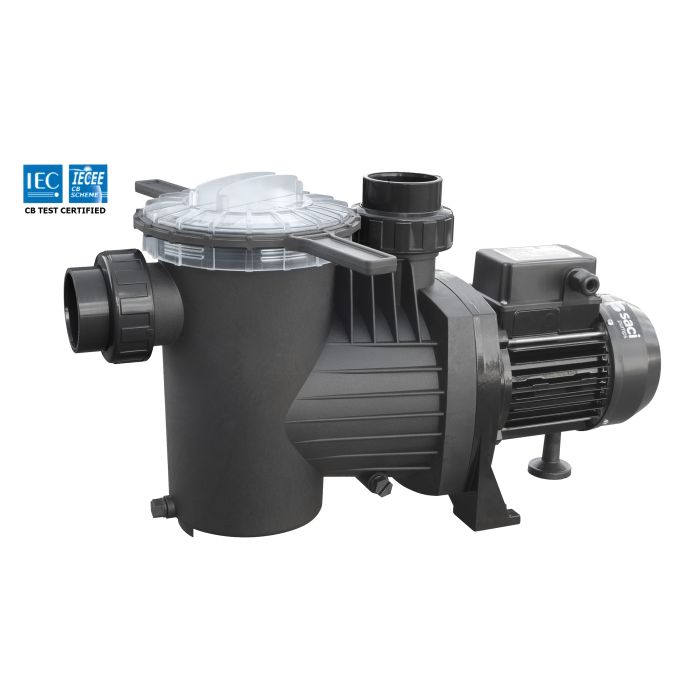

Saci Pump Winner

Self-priming electric pump for swimming pools, with a large built-in pre-filter, which generates a very high filtration capacity.
Filter with transparent polycarbonate cover that allows to easily observe the inside of the pre-filter basket.
It can work with salt water thanks to its AISI-316 mechanical seal.

Applications

Self-priming electric pump for swimming pools, with a large built-in pre-filter, which, together with the excellent hydraulic performance it offers, generates a very high filtration capacity.
Filter with transparent polycarbonate cover that allows to easily observe the inside of the pre-filter basket.

Impossibility of electrical communication with the water, since no part of the motor has contact with the pumped liquid. It includes as standard a key for effortless opening of the pre-filter lid, and a kit of fittings for gluing.

Constructive characteristics

Pump body, seal disc, diffuser and opening key in polypropylene, resistant to pool chemicals and reinforced with fiberglass, guaranteeing excellent durability.
Shaft in stainless steel AISI-316. Noryl turbine. Mechanical seal in stainless steel AISI-316 (suitable for working with sea water).
Screws in stainless steel AISI 304.

• The pump allows two types of connections
  • 2" female thread connection
  • Connection for Ø 63 PVC pipe for gluing
• Motor
  • Asynchronous motor, closed with external ventilation
  • Degree of protection IP-55. 50-60 Hz
  • Class F insulation
  • Motor bearings lubricated for life, and selected to guarantee long life and quietness.

Warranty information

3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27th.
