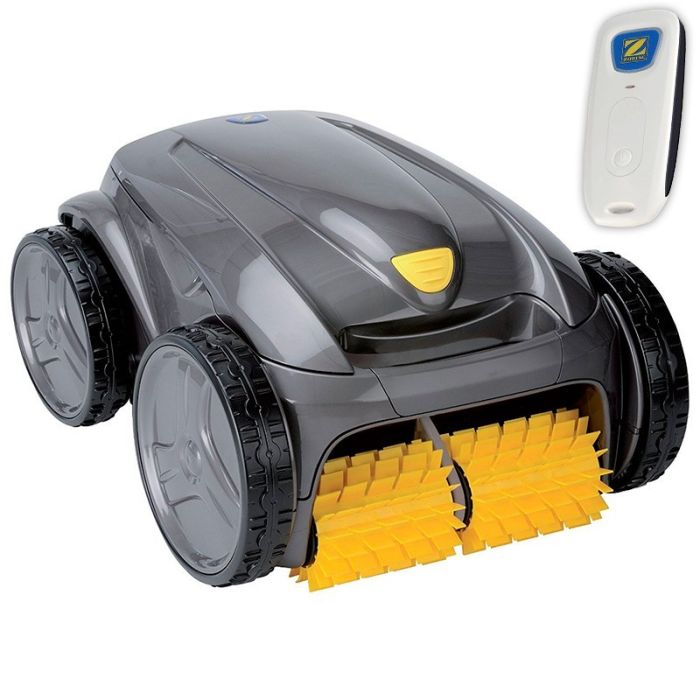

Cleaner Zodiac Vortex OV 3500

Electric pool cleaner Zodiac Vortex OV 3500, the ultimate power for the whole swimming pool.

• The new Zodiac Vortex OV 3500 is a robotic pool cleaner with cyclonic suction. powerfuldesigned to reduce filter clogging while maintaining the cleaning performance of the bottom, walls and water line.
• Its large capacity filter (5 liters) and its extra large suction mouth allow to suck and keep all types of waste in the most comfortable and simple way, without clogging the filter and without loss of suction.
• The filter is easy to clean because the Vortex OV 3500 filter can be accessed from the top without coming into contact with the debris.
• Great capacity of active cleaning with brushes to blades.
• This electric pool cleaner is designed for the following types of pools: in-ground pools and removable above-ground pools with rigid walls up to 12 x 6 m, either rectangular, oval or free-form and whose coatings are Gresite, liner, polyester hull, reinforced PVC, painted concrete. The pool bottoms can be flat, slight inclination, mixed inclination, diamond point.

Advantages and characteristics of the Zodiac Vortex OV 3500 pool cleaner

• Cleaning zone: Bottom / walls / water line.
• Power source: Stand-alone connected to 230 V.
• Displacement: Pre-programmed.
• Transmission: Gears
• Brushes: Yes
• Lift System: No
• Filter full indicator: No
• Remote control Kinetic equipped with motion sensors to guide the cleaner easily.
• Safety: Beach system, automatic out-of-water stop, electronic motor protection.
• Filter type / Access: Rigid filter with access from the top of the cleaner.
• Number of motors: 3
• Control system supply voltage: 200-240 VAC ; 50 Hz
• Power supply voltage of the cleaner: 30 VDC
• Power consumption: 150 W
• Dimensions of the cleaner (L x W x H): 43 x 48 x 27 cm.
• Packaging dimensions (L x W x H): 56 x 56 x 46 cm.
• Weight of the cleaner: 9.5 kg (Weight with packaging 19.2 kg).
• Filtering surface / Filtration level: 1280 cm2 / 100μ
• Filter capacity: 5 L.
• Cleaning cover: 27 cm
• Pump flow rate: 16 m3 / h.

Technical characteristics of the Zodiac Vortex OV 3500 pool cleaner

Zodiac Vortex OV 3500 cleaner warranty

Warranty 2 years

Accessories included:

• Control box
• Transport trolley
• Fine debris filtering tray 100 µ
• Kinetic remote control

Optional accessories:

• Filter for very fine debris 60 µ
• Filter for fine residues 100 µ
• Filter for large residues
• Protective cover
• Front wheel cover for tiled pools (each)

At Ferromar Swimming Pools you can discover a wide range of Zodiac robot pool cleaners so you can compare which one best suits your needs:

Comparison of Zodiac OV pool cleaner range

*Scroll horizontally to view the complete table.

	Zodiac OV3400	Zodiac OV3480	Zodiac OV3505	Zodiac OV5200	Zodiac OV5300	Zodiac OV5480IQ
Code	WR000024	WR000166	WR000152	WR000223	WR000162	WR000264
Swimming Pools Measurement	Up to 12 x 6m	Up to 12 x 6m	Up to 12 x 6m	Up to 12 x 6m	Up to 12 x 6m	Up to 12 x 6m
Cleaning Area	Background, Walls and Waterline	Bottom, Walls and Waterline	Bottom, Walls and Waterline	Bottom, Walls and Waterline	Bottom, Walls and Waterline	Bottom, Walls and Waterline
Cleaning Chilos	1	2	6	2	2	Multiple Cycles
Drive Wheels	2	2	2	4	4	4
Filter Full Indicator	No	Yes	No	No	Yes	Yes
Remote Control	No	No	Yes	No	No	Yes, via App
Cable length	18 m	18 m	18 m	18 m	18 m, with swivel	18 m, with swivel
Warranty	2 years	2 Years	2 Years	3 Years	3 Years	3 Years

*The correct functioning of the equipment cannot be guaranteed both at the bottom and on the walls if the pH level is not correct, if there is slime or algae, or if the filters are clogged by excess dust, and if the tank has not been previously completely cleaned, or if there are irregular surfaces on the walls such as steps or ribs*.

Warranty information

2-year warranty on motors, transformer and cable depending on their condition.
